EDS-600 Serisi Ethernet Anahtarlar İçin 4-portlu Fast Ethernet Modulleri
CM-600 Serisi EDS-600 serisi anahtarlar için farklı ethernet modül seçenekleri sunmaktadır.
CM-600-4TX-PTP modülü EDS-600 anahtarlar için 4 adet Fast Ethernet içerir ve bağlantı kurulan cihazlarla IEEE 1588 PTPv2 desteği ile nanosaniye mertebesinde haberleşmeye olanak sağlar. Zaman senkronizasyonu için kullanılan GPS destekli cihazlara nazaran, IEEE 1588 PTPv2 destekli CM-600-4TX-PTP modüller IEEE 1588 destekli kolay konfigüre edilebilen kullanıcı dostu arayüzü ile uygun maliyetli çözümler sunmaktadır.
CM-600 Serisi, EDS-600 serisi anahtarlar için bakır ya da fiber (SC/ST) konnektörlü 4 portlu modüller sunmaktadır. İhtiyaca yönelik çok yönlü çözümler sunabilmektedir.
• Interface
Fiber Ports
100BaseFX ports (SC/ST connector)
RJ45 Ports
10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection
LED Indicators
10/100 for TP port, 100M for fiber port
• Power Requirements
Power Consumption
CM-600-4TX: 0.72 W
CM-600-4TX-BP: 2.81 W
CM-600-4TX-PTP: 4.08 W
CM-600-4MSC, -4MST, -4SSC: 2.64 W
CM-600-3MSC/1TX, -3MST/1TX, -3SSC/1TX: 2.16 W
CM-600-2MSC/2TX, -2MST/2TX, -2SSC/2TX: 1.68 W
• Physical Characteristics
Housing IP30 protection
Dimensions 29.7 x 144.4 x 144.8 mm (1.17 x 5.69 x 5.7 in)
Weight
CM-600-4TX: 190 g
CM-600-4TX-BP: 240 g
CM-600-4TX-PTP: 185 g
CM-600-4MSC, -4MST, -4SSC: 240 g
CM-600-3MSC/1TX, -3MST/1TX, -3SSC/1TX: 230 g
CM-600-2MSC/2TX, -2MST/2TX, -2SSC/2TX: 230 g
• MTBF (mean time between failures)
Time 740,661 hrs
Database Telcordia (Bellcore), GB
• Warranty
Warranty Period 5 years
Details; www.moxa.com/warranty

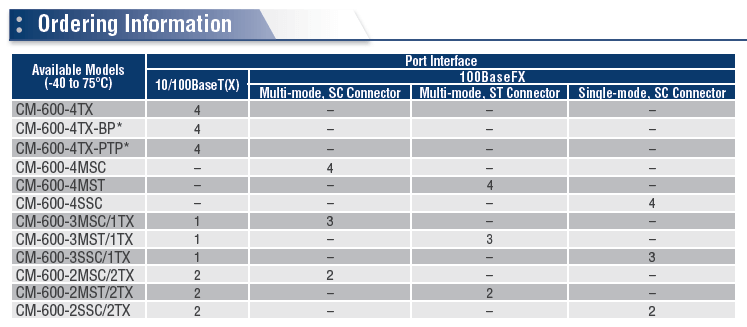

Mevcut Modeller
CM-600-2MSC/2TX
Fast Ethernet interface module with 2 10/100BaseT(X) ports, RJ45 connectors, and 2 100BaseFX multi-mode ports, SC connectors, -40 to 75°C operating temperature
CM-600-2MST/2TX
Fast Ethernet interface module with 2 10/100BaseT(X) ports, RJ45 connectors, and 2 100BaseFX multi-mode ports, ST connectors, -40 to 75°C operating temperature
CM-600-2SSC/2TX
Fast Ethernet interface module with 2 10/100BaseT(X) ports, RJ45 connectors, and 2 100BaseFX single-mode ports, SC connectors, -40 to 75°C operating temperature
CM-600-3MSC/1TX
Fast Ethernet interface module with 1 10/100BaseT(X) port, RJ45 connector, and 3 100BaseFX multi-mode ports, SC connectors, -40 to 75°C operating temperature
CM-600-3MST/1TX
Fast Ethernet interface module with 1 10/100BaseT(X) port, RJ45 connector, and 3 100BaseFX multi-mode ports, ST connectors, -40 to 75°C operating temperature
CM-600-3SSC/1TX
Fast Ethernet interface module with 1 10/100BaseT(X) port, RJ45 connector, and 3 100BaseFX single-mode ports, SC connectors, -40 to 75°C operating temperature
CM-600-4MSC
Fast Ethernet interface module with 4 100BaseFX multi-mode ports, SC connectors, -40 to 75°C operating temperature
CM-600-4MST
Fast Ethernet interface module with 4 100BaseFX multi-mode ports, ST connectors, -40 to 75°C operating temperature
CM-600-4SSC
Fast Ethernet interface module with 4 100BaseFX single-mode ports, SC connectors, -40 to 75°C operating temperature
CM-600-4TX
Fast Ethernet interface module with 4 10/100BaseT(X) ports, RJ45 connectors, -40 to 75°C operating temperature
CM-600-4TX-BP
Fast Ethernet interface module with 4 10/100BaseT(X) ports, RJ45 connectors, bypass support, -40 to 75°C operating temperature
CM-600-4TX-PTP
Fast Ethernet interface module with 4 10/100BaseT(X) ports, RJ45 connectors, IEEE 1588 PTP V2 protocol support, -40 to 75°C operating temperature
