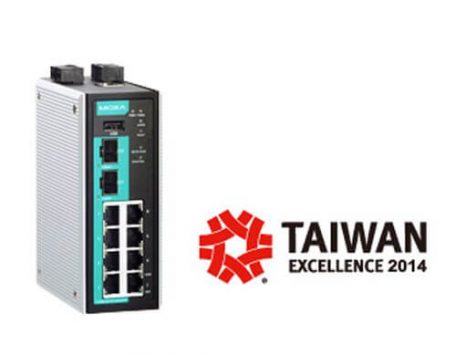

EDR-810 Serisi

• Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.1Q for VLAN tagging
IEEE 802.3ad for port trunk
Protocols SNMP v1/v2c/v3, DHCP server/client, TFTP, NTP/SNTP server/client, HTTP, HTTPS, Telnet, SSH, IPSec, L2TP, IGMP v1/v2/v3, QoS/CoS/ToS, Radius, RSTP/STP, LLDP, DDNS, Proxy ARP
Routing Static routing, RIP V1/V2, OSPF
Routing Redundancy VRRP
Multicast Routing Static, DVMRP, PIM-SM/SSM
Broadcast IP directed broadcast, broadcast forwarding
Redundancy STP/RSTP, Turbo Ring V2
Flow Control IEEE 802.3x flow control, back pressure flow control
• Interface
RJ45 Ports 10/100BaseT(X) auto negotiation speed
Fiber Ports 1000BaseSFP slot
Console Port Web/telnet/SSH/CLI, and RS-232 serial console
RESET button Reset to default settings
LED Indicators STATE, PWR1, PWR2, FAULT, 10/100/1000M
Alarm Contact One relay output with current carrying capacity of 1 A @ 24 VDC
Digital Inputs 1 2-contact terminal block• +13 to +30 V for state “1”
• -30 to +3 V for state “0”
• Max. input current: 8 mA
• Security Functions
Firewall • Stateful inspection
• Router firewall and transparent (bridge) firewall
• Filter: IP and MAC address, ports, ICMP, DDoS, Ethernet Protocols
• Deep Packet Inspection on Modbus TCP
Quick Automation Profile EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, LonWorks, Modbus/TCP, PROFINET, IEC 60870-104, DNP, FTP, SSH, Telnet, HTTP, IPSec, L2TP, PPTP, RADIUS
NAT N-to-1, 1-to-1, bidirectional 1-to-1, and port forwarding
VPN IPSec (client/server), L2TP (server), PPTP (client), Max. 10 VPN tunnels (VPN model)
Real-Time Firewall / VPN Event Log Local storage, syslog, and SNMP trap
Encryption DES, 3DES, AES-128/192/256 (VPN model)
Authentication Pre-shared key (PSK), X.509v3 certificates, MD5, SHA
Data Throughput 100 Mbps (10000 fps)
VPN Throughput 17 Mbps (AES-256, SHA-256)
• Switch Properties
Max. Number of VLANs 16
VLAN ID Range 1 to 4094
IGMP Groups 256
• Power Requirements
Input Voltage 12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs
Input Current 0.37 A @ 24 V
Overload Current Protection Present
Connection Removable terminal block
Reverse Polarity Protection Present
• Physical Characteristics
Housing Metal
Dimensions 53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight 830 g
Installation DIN-rail mounting, wall mounting (with optional kit)
• Environmental Limits
Operating Temperature Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
• Standards and Certifications
Safety UL 508
Hazardous Location UL/cUL Class I Division 2 Groups A/B/C/D
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3
Rail Traffic EN 50121-4
Transportation NEMA TS2
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Note Please check Moxa’s website for the most up-to-date certification status.
• MTBF (mean time between failures)
Time 981,954 hrs
Database Telcordia (Bellcore), GB
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty

Modeller

EDR-810-2GSFP 8+2G SFP

Industrial multiport secure router with Firewall/NAT, -10 to 60°C operating temperature

EDR-810-2GSFP-T 8+2G SFP

Industrial multiport secure router with Firewall/NAT, -40 to 75°C operating temperature

EDR-810-VPN-2GSFP 8+2G SFP

Industrial multiport secure router with Firewall/NAT/VPN, -10 to 60°C operating temperature

EDR-810-VPN-2GSFP-T 8+2G SFP

Industrial multiport secure router with Firewall/NAT/VPN, -40 to 75°C operating temperature

Compatible Modules

SFP-1G Series

SFP-1G10ALC: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature
SFP-1G10ALC-T: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1310 nm, RX 1550 nm, -40 to 85°C operating temperature
SFP-1G10BLC: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1550 nm, RX 1310 nm, 0 to 60°C operating temperature
SFP-1G10BLC-T: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature
SFP-1G20ALC: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature
SFP-1G20ALC-T: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1310 nm, RX 1550 nm, -40 to 85°C operating temperature
SFP-1G20BLC: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1550 nm, RX 1310 nm, 0 to 60°C operating temperature
SFP-1G20BLC-T: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature
SFP-1G40ALC: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature
SFP-1G40ALC-T: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1310 nm, RX 1550 nm, -40 to 85°C operating temperature
SFP-1G40BLC: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1550 nm, RX 1310 nm, 0 to 60°C operating temperature
SFP-1G40BLC-T: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature
SFP-1GEZXLC: SFP module with 1 1000BaseEZX port with LC connector for 110 km transmission, 0 to 60°C operating temperature
SFP-1GEZXLC-120: SFP module with 1 1000BaseEZX port with LC connector for 120 km transmission, 0 to 60°C operating temperature
SFP-1GLHLC: SFP module with 1 1000BaseLH port with LC connector for 30 km transmission, 0 to 60°C operating temperature
SFP-1GLHLC-T: SFP module with 1 1000BaseLH port with LC connector for 30 km transmission, -40 to 85°C operating temperature
SFP-1GLHXLC: SFP module with 1 1000BaseLHX port with LC connector for 40 km transmission, 0 to 60°C operating temperature
SFP-1GLHXLC-T: SFP module with 1 1000BaseLHX port with LC connector for 40 km transmission, -40 to 85°C operating temperature
SFP-1GLSXLC: SFP module with 1 1000BaseLSX port with LC connector for 2 km transmission, 0 to 60°C operating temperature
SFP-1GLSXLC-T: SFP module with 1 1000BaseLSX port with LC connector for 2 km transmission, -40 to 85°C operating temperature
SFP-1GLXLC: SFP module with 1 1000BaseLX port with LC connector for 10 km transmission, 0 to 60°C operating temperature
SFP-1GLXLC-T: SFP module with 1 1000BaseLX port with LC connector for 10 km transmission, -40 to 85°C operating temperature
SFP-1GSXLC: SFP module with 1 1000BaseSX port with LC connector for 0.5 km transmission, 0 to 60°C operating temperature
SFP-1GSXLC-T: SFP module with 1 1000BaseSX port with LC connector for 0.5 km transmission, -20 to 75°C operating temperature
SFP-1GZXLC: SFP module with 1 1000BaseZX port with LC connector for 80 km transmission, 0 to 60°C operating temperature
SFP-1GZXLC-T: SFP module with 1 1000BaseZX port with LC connector for 80 km transmission, -40 to 85°C operating temperature
