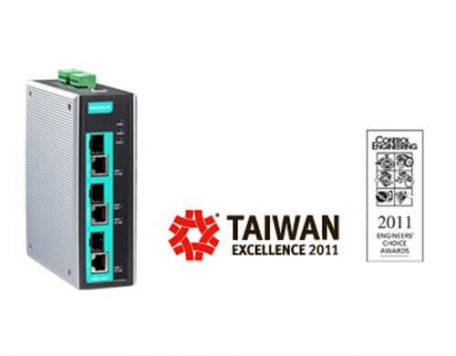

EDR-G903 Serisi

• Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
Protocols SNMPv1/v2c/v3, DHCP Server/Client, TFTP, NTP, HTTP, HTTPS, Telnet, SSH, Syslog, SMTP, LLDP, PPPoE, PPTP, Dynamic DNS, QoS (Quality of Service)
Routing Static routing, RIP V1/V2, VRRP
VLAN 5 VLANs per interfaces (VLAN ID: 1 to 4094)
Flow Control IEEE 802.3x flow control, back pressure flow control
• Interface
WAN/WAN1 1 RJ45/Fiber combo port
WAN2/DMZ 1 RJ45/Fiber combo port
LAN RJ45/SFP combo port
RJ45 Ports 10/100/1000BaseT(X) auto negotiation speed
Fiber Ports 100/1000BaseSFP slot
LED Indicators PWR1, PWR2, FAULT, 10/100/1000M
Alarm Contact One relay output with current carrying capacity of 1 A @ 24 VDC
Digital Inputs 1 input
• +13 to +30 V for state “1”
• -30 to +3 V for state “0”
• Max. input current: 8 mA
• Security Function
Firewall • Stateful inspection
• Filter: IP and MAC address, ports, ICMP, DDoS, Ethernet Protocols
• Bridge mode firewall
• Deep Packet Inspection on Modbus TCP
Quick Automation Profile EtherCAT, EtherNet/IP, FOUNDATION Fieldbus, LonWorks, Modbus/TCP, PROFINET, IEC 60870-104, DNP, FTP, SSH, Telnet, HTTP, IPSec, L2TP, PPTP, RADIUS
NAT N-to-1, 1-to-1, and port forwarding
VPN IPSec (client/server), L2TP (server), PPTP (client), Max. 50 tunnels (EDR-G902) or Max. 100 tunnels (EDR-G903)
Encryption DES, 3DES, AES-128/192/256
Authentication Pre-shared key (PSK), X.509v3 certificates, MD5, SHA
Data Throughput 300 Mbps (40000 fps)
VPN Throughput (AES-256, SHA-256) 150 Mbps
• Power Requirements
Input Voltage 12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs
Input Current 0.53 A @ 24 V
Overload Current Protection Present
Connection Removable terminal block
Reverse Polarity Protection Present
• Physical Characteristics
Housing Metal, IP 30 protection
Dimensions 51 x 152 x 131.1 mm (2.01 x 5.98 x 5.16 in)
Weight 1250 g
Installation DIN-Rail mounting, wall mounting (with optional kit)
• Environmental Limits
Operating Temperature Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95 % (non-condensing)
• Standards and Certifications
Safety UL 508
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3
Marine DNV (EDR-G902)
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Note Please check Moxa’s website for the most up-to-date certification status.
• MTBF (mean time between failures)
Time 530,000 hrs
Database Telcordia (Bellcore), GB
• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty

Modeller

EDR-G903

Industrial Gigabit Firewall/NAT secure router with 2 WAN/1 DMZ ports, 100 VPN Tunnels, 0 to 60°C operating temperature

EDR-G903-T

Industrial Gigabit Firewall/NAT secure router with 2 WAN/1 DMZ ports, 100 VPN Tunnels, -40 to 75°C operating temperature

Compatible Modules

SFP-1G Series

SFP-1G10ALC: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature
SFP-1G10ALC-T: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1310 nm, RX 1550 nm, -40 to 85°C operating temperature
SFP-1G10BLC: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1550 nm, RX 1310 nm, 0 to 60°C operating temperature
SFP-1G10BLC-T: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature
SFP-1G20ALC: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature
SFP-1G20ALC-T: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1310 nm, RX 1550 nm, -40 to 85°C operating temperature
SFP-1G20BLC: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1550 nm, RX 1310 nm, 0 to 60°C operating temperature
SFP-1G20BLC-T: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature
SFP-1G40ALC: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature
SFP-1G40ALC-T: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1310 nm, RX 1550 nm, -40 to 85°C operating temperature
SFP-1G40BLC: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1550 nm, RX 1310 nm, 0 to 60°C operating temperature
SFP-1G40BLC-T: WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature
SFP-1GEZXLC: SFP module with 1 1000BaseEZX port with LC connector for 110 km transmission, 0 to 60°C operating temperature
SFP-1GEZXLC-120: SFP module with 1 1000BaseEZX port with LC connector for 120 km transmission, 0 to 60°C operating temperature
SFP-1GLHLC: SFP module with 1 1000BaseLH port with LC connector for 30 km transmission, 0 to 60°C operating temperature
SFP-1GLHLC-T: SFP module with 1 1000BaseLH port with LC connector for 30 km transmission, -40 to 85°C operating temperature
SFP-1GLHXLC: SFP module with 1 1000BaseLHX port with LC connector for 40 km transmission, 0 to 60°C operating temperature
SFP-1GLHXLC-T: SFP module with 1 1000BaseLHX port with LC connector for 40 km transmission, -40 to 85°C operating temperature
SFP-1GLSXLC: SFP module with 1 1000BaseLSX port with LC connector for 2 km transmission, 0 to 60°C operating temperature
SFP-1GLSXLC-T: SFP module with 1 1000BaseLSX port with LC connector for 2 km transmission, -40 to 85°C operating temperature
SFP-1GLXLC: SFP module with 1 1000BaseLX port with LC connector for 10 km transmission, 0 to 60°C operating temperature
SFP-1GLXLC-T: SFP module with 1 1000BaseLX port with LC connector for 10 km transmission, -40 to 85°C operating temperature
SFP-1GSXLC: SFP module with 1 1000BaseSX port with LC connector for 0.5 km transmission, 0 to 60°C operating temperature
SFP-1GSXLC-T: SFP module with 1 1000BaseSX port with LC connector for 0.5 km transmission, -20 to 75°C operating temperature
SFP-1GZXLC: SFP module with 1 1000BaseZX port with LC connector for 80 km transmission, 0 to 60°C operating temperature
SFP-1GZXLC-T: SFP module with 1 1000BaseZX port with LC connector for 80 km transmission, -40 to 85°C operating temperature
