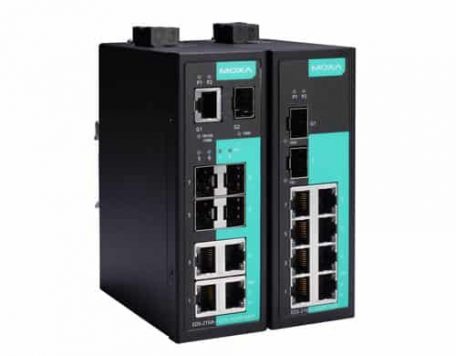

EDS-210A Serisi

• Technology

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT
IEEE 802.3z for 1000BaseX

Processing Type

Store and Forward

Flow Control

IEEE 802.3x flow control, back pressure flow control

• Switch Properties

MAC Table Size 8 K

Packet Buffer Size 1 Mbit

• Interface

EDS-210A-1GSFP-1SFP Series

Fiber Ports: 100BaseSFP slot and 1000BaseSFP slot
RJ45 Ports: 10/100BaseT(X) auto negotiation speed, full/half duplex mode, and auto MDI/MDI-X connection
LED Indicators: PWR1, PWR2, 100M (fiber port), 1000M (fiber port), 10/100

EDS-210A-1GTX-1GSFP-4SFP Series

Fiber Ports: 100BaseSFP slot and 1000BaseSFP slot
RJ45 Ports: 10/100/1000 BaseT(X), 10/100BaseT(X) auto negotiation speed, full/half duplex mode, and auto MDI/MDI-X connection
LED Indicators: PWR1, PWR2, 100M (fiber port),

• Power Requirements

Input Voltage

12/24/48 VDC (9.6 to 60 VDC), redundant dual inputs

Input Current

EDS-210A-1GSFP-1SFP: 0.45 A @ 24 V
EDS-210A-1GTX-1GSFP-4SFP: 0.45 A @ 24 V

Overload Current Protection

3A

Connection

2 removable 2-contact terminal block

Reverse Polarity Protection

Present

• Physical Characteristics

Housing

Metal, IP30 protection

Dimensions

45.8 x 134 x 105 mm (1.8 x 5.28 x 4.13 in)

Weight

EDS-210A-1GSFP-1SFP: 520 g
EDS-210A-1GTX-1GSFP-4SFP: 570 g

Installation

DIN-rail mounting, wall mounting (with optional kit)

• Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

Safety

UL 508

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS

EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Note

Please check Moxa’s website for the most up-to-date certification status.

• MTBF (mean time between failures)

Time

EDS-210A-1GSF-1SFP: 2,469,233 hrs
EDS-210A-1GTX-1GSF-4SFP: 2,485,402 hrs

Database

Telcordia (Bellcore), GB

• Warranty

Warranty Period 5 years

Details; www.moxa.com/warranty

Mevcut Modeller

EDS-210A-1GSFP-1SFP

Unmanaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 1 100BaseSFP slot, 1 1000BaseSFP slot, and -10 to 60°C operating temperature

EDS-210A-1GSFP-1SFP-T

Unmanaged Gigabit Ethernet switch with 8 10/100BaseT(X) ports, 1 100BaseSFP slot, 1 1000BaseSFP slot, and -40 to 75°C operating temperature

EDS-210A-1GTX-1GSFP-4SFP

Unmanaged Gigabit Ethernet switch with 4 10/100BaseT(X) ports, 4 100BaseSFP slots, 1 1000BaseSFP slot, 1 1000BaseT(X) port, and -10 to 60°C operating temperature

EDS-210A-1GTX-1GSFP-4SFP-T

Unmanaged Gigabit Ethernet switch with 4 10/100BaseT(X) ports, 4 100BaseSFP slots, 1 1000BaseSFP slot, 1 1000BaseT(X) port, and -40 to 75°C operating temperature
