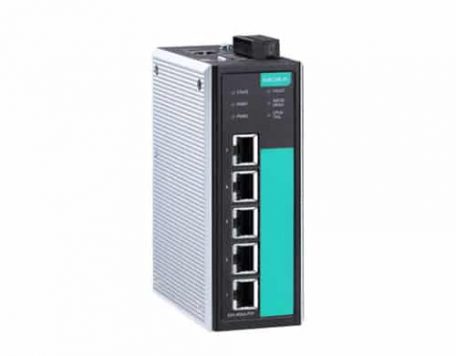

EDS-405A-PTP Serisi

• Technology

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.1Q for VLAN Tagging

Protocols

IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, TFTP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, DHCP Option 66/67/82, BootP, LLDP, PROFINET, EtherNet/IP, Modbus/TCP, IPv6, NTP Server/Client, HTTPS, SSH

MIB

MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control

IEEE 802.3x flow control, back pressure flow control

• Switch Properties

Priority Queues 4

Max. Number of Available VLANs 64

VLAN ID Range VID 1 to 4094

IGMP Groups 256

MAC Table Size 8 K

Packet Buffer Size 1 Mbit

• Interface

RJ45 Ports

10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection

Console Port

RS-232 (RJ45 connector)

DIP Switches

Turbo Ring, Master, Coupler, Reserve

LED Indicators

STATE, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M

Alarm Contact

1 relay output with current carrying capacity of 1 A @ 24 VDC

• Power Requirements

Input Voltage

12/24/48 (9.6 to 60 VDC), redundant dual inputs

Input Current

0.27 A @ 24 V

Overload Current Protection

Present

Connection

1 removable 6-contact terminal block

Reverse Polarity Protection

Present

• Physical Characteristics

Housing

Metal, IP30 protection

Dimensions

53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)

Weight

820 g

Installation

DIN-rail mounting, wall mounting (with optional kit)

• Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

Safety

UL 508 (pending)

EMI

FCC Part 15 Subpart B Class A, EN 61000-6-4 (industrial)

EMS

EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Note

Please check Moxa’s website for the most up-to-date certification status.

• MTBF (mean time between failures)

Time

1,292,680 hours

Database

Telcordia (Bellcore), GB

• Warranty

Warranty Period 5 years

Details; www.moxa.com/warranty

Mevcut Modeller

EDS-405A-PTP

Managed Ethernet switch with 5 10/100BaseT(X) ports, hardware-based IEEE 1588 PTPv2 protocol support, -10°C to 60°C operating temperature

EDS-405A-PTP-T

Managed Ethernet switch with 5 10/100BaseT(X) ports, hardware-based IEEE 1588 PTPv2 protocol support, -40°C to 75°C operating temperature
