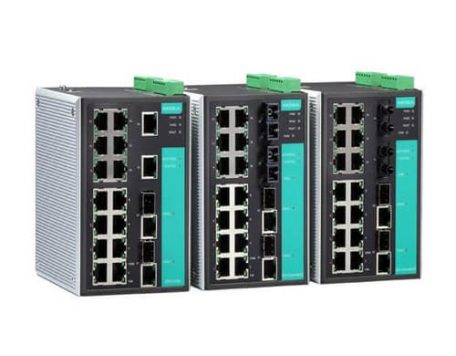

EDS-516A Serisi

• Technology

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP

Protocols

IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, SNMP Inform, EtherNet/IP, Modbus/TCP, LLDP, IEEE 1588 PTPv2, IPv6, NTP Server/Client

MIB

MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control

IEEE 802.3x flow control, back pressure flow control

• Switch Properties

Priority Queues 4

Max. Number of Available VLANs 64

VLAN ID Range VID 1 to 4094

IGMP Groups 256

MAC Table Size 8 K

Packet Buffer Size 2 Mbit

• Interface

Fiber Ports

100BaseFX (SC/ST connector) and 1000BaseSFP slot

RJ45 Ports

10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation speed

Console Port

RS-232 (RJ45 connector)

LED Indicators

PWR1, PWR2, FAULT, 10/100M (TP port), 100M (fiber port), MSTR/HEAD, CPLR/TAIL

Alarm Contact

2 relay outputs with current carrying capacity of 1 A @ 24 VDC

Digital Inputs

2 inputs with the same ground, but electrically isolated from the electronics.
• +13 to +30V for state “1”
• -30 to +3V for state “0”
• Max. input current: 8 mA

• Power Requirements

Input Voltage

24 VDC (12 to 45 VDC), redundant dual inputs

Input Current

EDS-518A: 0.51 A @ 24 V
EDS-518A-MM/SS: 0.61 A @ 24 V

Overload Current Protection

Present

Connection

2 removable 6-contact terminal blocks

Reverse Polarity Protection

Present

• Physical Characteristics

Housing

Metal, IP30 protection

Dimensions

94 x 135 x 142.7 mm (3.7 x 5.31 x 5.62 in)

Weight 1630 g

Installation DIN-rail mounting, wall mounting (with optional kit)

• Environmental Limits

Operating Temperature

Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

Safety

UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1

Hazardous Location

UL/cUL Class 1 Division 2 Groups A/B/C/D,
ATEX Zone 2 Ex nA nC IIC T4 Gc

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS

EN 61000-4-2 (ESD) Level 2, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 2, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-12

Marine

DNV, GL, NK

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Note

Please check Moxa’s website for the most up-to-date certification status.

• MTBF (mean time between failures)

Time240,000 hrs

Database Telcordia (Bellcore), GB

• Warranty

Warranty Period 5 years

Details; www.moxa.com/warranty

Mevcut Modeller

EDS-516A

Managed Ethernet switch with 16 10/100BaseT(X) ports, 0 to 60°C operating temperature

EDS-516A-MM-SC

Managed Ethernet switch with 14 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, 0 to 60°C operating temperature

EDS-516A-MM-SC-T

Managed Ethernet switch with 14 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with SC connectors, -40 to 75°C operating temperature

EDS-516A-MM-ST

Managed Ethernet switch with 14 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, 0 to 60°C operating temperature

EDS-516A-MM-ST-T

Managed Ethernet switch with 14 10/100BaseT(X) ports, and 2 100BaseFX multi-mode ports with ST connectors, -40 to 75°C operating temperature

EDS-516A-T

Managed Ethernet switch with 16 10/100BaseT(X) ports, -40 to 75°C operating temperature

Opsiyonel

EDS-SNMP OPC Server Pro

OPC server software that works with all SNMP devices

Güç Kaynakları

MDR-60-24

60W/2.5A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -20 to 70°C operating temperature

MDR-40-24

40W/1.7A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input , -20 to 70°C operating temperature

DR-4524

45W/2A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -10 to 50°C operating temperature

DR-75-24

75W/3.2A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -10 to 60°C operating temperature

DR-120-24

120W/5A DIN-Rail 24 VDC power supply with universal 88 to 132 VAC or 176 to 264 VAC input by switch, or 248-370 VDC , -10 to 60°C operating temperature

Monitoring & Management Yazılımları

MXconfig

Industrial network configuration tool

MXview

Industrial network management software
