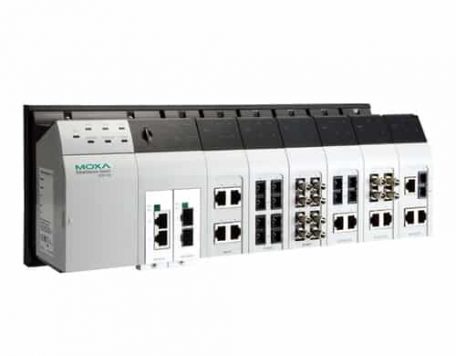

EDS-728 Serisi

Technology

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP

Protocols

IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, LLDP, IEEE 1588 PTPv2, EtherNet/IP, Modbus/TCP, SNMP Inform, NTP Server/Client

Layer 3 Switching

Static routing, RIP V1/V2, OSPF, DVMRP, PIM-DM

Layer 3 Switching Redundancy

VRRP

MIB

MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Groups 1, 2, 3, 9

Flow Control

IEEE 802.3x flow control, back pressure flow control

• Switch Properties

Priority Queues

4

Max. Number of Available VLANs

64

VLAN ID Range

VID 1 to 4094

IGMP Groups

256

MAC Table Size

16 K

Packet Buffer Size

32 MB

• Interface

Fast Ethernet

6 slots for any combination of 4-port interface modules, 10/100BaseT(X) or 100BaseFX

Gigabit Ethernet

2 slots for any combination of 2-port interface modules, 10/100/1000BaseT(X) or 1000BaseSFP slot

Console Port

RS-232 (RJ45 connector)

System LED Indicators

STAT, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, T.RING

Mode LED Indicators

LNK/ACT, FDX/HDX, RING PORT, COUPLER PORT, SPEED

Alarm Contact

2 relay outputs with current carrying capacity of 1 A @ 24 VDC

Digital Inputs

2 inputs with the same ground, but electrically isolated from the electronics.
• +13 to +30V for state “1”
• -30 to +3V for state “0”
• Max. input current: 8 mA

Power Requirements

Input Voltage

24 VDC (12 to 45 VDC), redundant dual inputs

Input Current

0.96 A @ 24 V

Overload Current Protection

Present

Connection

2 removable 6-contact terminal blocks

Reverse Polarity Protection

Present

• Physical Characteristics

Housing

IP30 protection

Dimensions

362.4 x 142.5 x 128 mm (14.27 x 5.61 x 5.04 in)

Weight

1950 g

Installation

DIN-rail mounting, wall mounting (with optional kit)

• Environmental Limits

Operating Temperature

0 to 60°C (32 to 140°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

Safety

UL 508, UL 60950-1, CSA C22.2 No. 60950-1, EN 60950-1

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS
EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-12

Marine

DNV, GL, LR, ABS, NK

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Note

Please check Moxa’s website for the most up-to-date certification status.

• MTBF (mean time between failures)

Time

191,203 hrs

Database

Telcordia (Bellcore), GB

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Mevcut Modeller

EDS-72810G

Modular managed Ethernet switch system with 6 slots for 4-port fast Ethernet interface modules and 2 slots for 2-port Gigabit interface modules, for a total of up to 24+4G ports, 0 to 60°C operating temperature

Uyumlu Modüller

SFP-1G Serisi

SFP-1G10ALC

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature

SFP-1G10ALC-T

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1310 nm, RX 1550 nm, -40 to 85°C operating temperature

SFP-1G10BLC

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1550 nm, RX 1310 nm, 0 to 60°C operating temperature

SFP-1G10BLC-T

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 10 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature

SFP-1G20ALC

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature

SFP-1G20ALC-T

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1310 nm, RX 1550 nm, -40 to 85°C operating temperature

SFP-1G20BLC

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1550 nm, RX 1310 nm, 0 to 60°C operating temperature

SFP-1G20BLC-T

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 20 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature

SFP-1G40ALC

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1310 nm, RX 1550 nm, 0 to 60°C operating temperature

SFP-1G40ALC-T

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1310 nm, RX 1550 nm, -40 to 85°C operating temperature

SFP-1G40BLC

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1550 nm, RX 1310 nm, 0 to 60°C operating temperature

SFP-1G40BLC-T

WDM-type (BiDi) SFP module with 1 1000BaseSFP port with LC connector for 40 km transmission; TX 1550 nm, RX 1310 nm, -40 to 85°C operating temperature

SFP-1GEZXLC

SFP module with 1 1000BaseEZX port with LC connector for 110 km transmission, 0 to 60°C operating temperature

SFP-1GLHLC

SFP module with 1 1000BaseLH port with LC connector for 30 km transmission, 0 to 60°C operating temperature

SFP-1GLHLC-T

SFP module with 1 1000BaseLH port with LC connector for 30 km transmission, -40 to 85°C operating temperature

SFP-1GLHXLC

SFP module with 1 1000BaseLHX port with LC connector for 40 km transmission, 0 to 60°C operating temperature

SFP-1GLHXLC-T

SFP module with 1 1000BaseLHX port with LC connector for 40 km transmission, -40 to 85°C operating temperature

SFP-1GLSXLC

SFP module with 1 1000BaseLSX port with LC connector for 2 km transmission, 0 to 60°C operating temperature

SFP-1GLSXLC-T

SFP module with 1 1000BaseLSX port with LC connector for 2 km transmission, -40 to 85°C operating temperature

SFP-1GLXLC

SFP module with 1 1000BaseLX port with LC connector for 10 km transmission, 0 to 60°C operating temperature

SFP-1GLXLC-T

SFP module with 1 1000BaseLX port with LC connector for 10 km transmission, -40 to 85°C operating temperature

SFP-1GSXLC

SFP module with 1 1000BaseSX port with LC connector for 0.5 km transmission, 0 to 60°C operating temperature

SFP-1GSXLC-T

SFP module with 1 1000BaseSX port with LC connector for 0.5 km transmission, -20 to 75°C operating temperature

SFP-1GZXLC

SFP module with 1 1000BaseZX port with LC connector for 80 km transmission, 0 to 60°C operating temperature

SFP-1GZXLC-T

SFP module with 1 1000BaseZX port with LC connector for 80 km transmission, -40 to 85°C operating temperature

IM Serisi

IM-2GSFP

Gigabit Ethernet interface module with 2 1000BaseSFP slots (see the SFP-1G series ordering information for available Gigabit Ethernet SFP modules), 0 to 60°C operating temperature

IM-4SSC

Fast Ethernet interface module with 4 100BaseFX single-mode ports (SC connectors), 0 to 60°C operating temperature

IM-2MST/2TX

Fast Ethernet interface module with 2 10/100BaseT(X) ports and 2 100BaseFX multi-mode ports (ST connectors), 0 to 60°C operating temperature

IM-1LSC/3TX

Fast Ethernet interfaceAC module with 3 10/100BaseT(X) ports and 1 100BaseFX single-mode port (SC connector for 80 km transmission), 0 to 60°C operating temperature

IM-4TX

Fast Ethernet interface module with 4 10/100BaseT(X) ports, 0 to 60°C operating temperature

IM-4MST

Fast Ethernet interface module with 4 100BaseFX multi-mode ports (ST connectors), 0 to 60°C operating temperature

IM-4MSC

Fast Ethernet interface module with 4 100BaseFX multi-mode ports (SC connectors), 0 to 60°C operating temperature

IM-2SSC/2TX

Fast Ethernet interface module with 2 10/100BaseT(X) ports and 2 100BaseFX single-mode ports (SC connectors), 0 to 60°C operating temperature

IM-2MSC/2TX

Fast Ethernet interface module with 2 10/100BaseT(X) ports and 2 100BaseFX multi-mode ports (SC connectors), 0 to 60°C operating temperature

IM-2GTX

Gigabit Ethernet interface module with 2 10/100/1000BaseT(X) ports, 0 to 60°C operating temperature

Opsiyonel

EDS-SNMP OPC Server Pro

OPC server software that works with all SNMP devices

Güç Kaynakları

MDR-60-24

60W/2.5A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -20 to 70°C operating temperature

MDR-40-24

40W/1.7A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input , -20 to 70°C operating temperature

DR-4524

45W/2A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -10 to 50°C operating temperature

DR-75-24

75W/3.2A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -10 to 60°C operating temperature

DR-120-24

120W/5A DIN-Rail 24 VDC power supply with universal 88 to 132 VAC or 176 to 264 VAC input by switch, or 248-370 VDC , -10 to 60°C operating temperature

Montaj Kitleri

WK-32

Wall mounting kit for the EDS-700/800 series

Monitoring & Management Yazılımları

Model

MXconfig

Industrial network configuration tool

MXview

Industrial network management software
