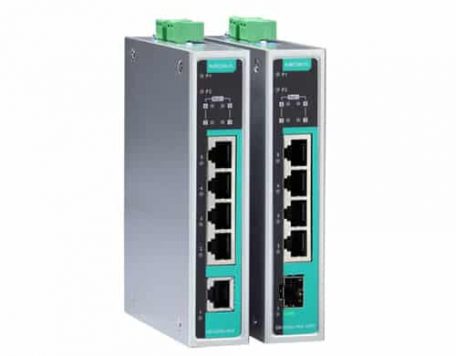

EDS-G205A-4POE Serisi

• Technology

Standards

IEEE 802.3af/at for Power-over-Ethernet
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
IEEE 802.3ab for 1000BaseT
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control

Processing Type

Store and Forward

• Switch Properties

MAC Table Size

8 K

Packet Buffer Size

136 KB

Jumbo Frame Size

9.6 KB

• Interface

Fiber Port

1000BaseSFP slot

RJ45 Ports

10/100/1000BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection

PoE Pinout

V+, V+, V-, V- for Pin 1,2,3,6 (Endspan, MDI Alternative A)

LED Indicators

P1, P2, 10/100/1000M, PoE

• Power Requirements

Input Voltage

24/48 VDC, redundant dual inputs

Input Current

Max 7.5 A @ 24 VDC (supports up to 4 ports at 30 watts per PoE port)

Overload Current Protection

Present

Connection

2 removable 2-contact terminal blocks

Reverse Polarity Protection

Present

• Physical Characteristics

Housing

Metal, IP30 protection

Dimensions

29 x 135 x 105 mm (1.14 x 5.31 x 4.13 in)

Weight

300 g

Installation

DIN-rail mounting, wall mounting (with optional kit)

• Environmental Limits

Operating Temperature

Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

Safety

UL 508

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS

EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4, EN 61000-4-5 (Surge) Level 4,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Rail Traffic

EN 50121-4

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Note

Please check Moxa’s website for the most up-to-date certification status.

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Mevcut Modeller

EDS-G205A-4PoE

Unmanaged Ethernet switch with 1 10/100/1000BaseT port and 4 PoE/PoE+ ports, 0 to 60°C operating temperature

EDS-G205A-4PoE-T

Unmanaged Ethernet switch with 1 10/100/1000BaseT port and 4 PoE/PoE+ ports, -40 to 75°C operating temperature

EDS-G205A-4PoE-1GSFP

Unmanaged Ethernet switch with 1 1000Base-X port and 4 10/100/1000BaseT PoE/PoE+ ports, 0 to 60°C operating temperature

EDS-G205A-4PoE-1GSFP-T

Unmanaged Ethernet switch with 1 1000Base-X port and 4 10/100/1000BaseT PoE/PoE+ ports, -40 to 75°C operating temperature
