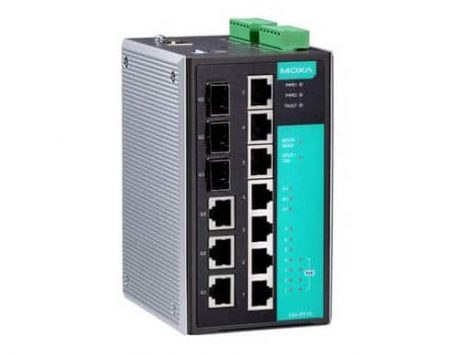

EDS-P510 Serisi

• Technology

Standards

IEEE 802.3af/at for Power-over-Ethernet
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP

Protocols

IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, EtherNet/IP, Modbus/TCP, SNMP Inform, LLDP, IEEE 1588 PTPv2, IPv6, NTP Server/Client

MIB

MIB-II, Ethernet-Like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control

IEEE 802.3x flow control, back pressure flow control

• Switch Properties

Priority Queues

4

Max. Number of Available VLANs

64

VLAN ID Range

VID 1 to 4094

IGMP Groups

1024

MAC Table Size

8 K

Packet Buffer Size

1 Mbit

• Interface

Fiber Ports

100/1000BaseSFP slot

RJ45 Ports

10/100BaseT(X) or 10/100/1000BaseT(X) auto negotiation speed

PoE Pinout

V+, V+, V-, V- for pin 1, 2, 3, 6 (Endspan, MDI, Mode A)

Console Port

RS-232 (RJ45 connector)

DIP Switches

Turbo Ring, Master, Coupler, Reserve

LED Indicators

PWR1, PWR2, FAULT, 10/100/1000, 10/100, MSTR/HEAD, CPLR/TAIL, PoE+

Alarm Contact

1 relay output with current carrying capacity of 0.5 A @ 48 VDC

Digital Inputs

1 input with the same ground, but electrically isolated from the electronics.
• +13 to +30 V for state “1”
• -30 to +3 V for state “0”
• Max. input current: 8 mA

• Power Requirements

Input Voltage

48 (46 to 57 V) VDC, redundant dual inputs (> 50 VDC for PoE+ output recommended)

Input Current

0.27 A @ 48 VDC (w/o PDs connected), 0.42 A @ 48 VDC (w/ 8 PDs connected, excluding PDs’ consumption)*

Overload Current Protection

Present

Connection

2 removable 2-contact terminal blocks

Reverse Polarity Protection

Present

Note

*When selecting power supply, check the PD power consumption

• Physical Characteristics

Housing

Metal, IP30 protection

Dimensions

79.2 x 135 x 105 mm (3.12 x 5.31 x 4.13 in)

Weight

1030 g

Installation

DIN-rail mounting, wall mounting (with optional kit)

• Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

Safety

UL 508

Hazardous Location

UL/cUL Class 1 Division 2

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS

EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3

Traffic Control

NEMA-TS2

Rail Traffic

EN 50121-4

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Note

Please check Moxa’s website for the most up-to-date certification status.

• MTBF (mean time between failures)

Time

710,166 hrs

Database

Telcordia (Bellcore), GB

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Mevcut Modeller

EDS-P510

Managed Gigabit Ethernet switch with 3 10/100BaseT(X) ports, 4 PoE 10/100BaseT(X) ports, and 3 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE series Gigabit/fast Ethernet modules, 0 to 60°C operating temperature

EDS-P510-T

Managed Gigabit Ethernet switch with 3 10/100BaseT(X) ports, 4 PoE 10/100BaseT(X) ports, and 3 combo 10/100/1000BaseT(X) or 100/1000BaseSFP slots for adding SFP-1G/1FE series Gigabit/fast Ethernet modules, -40 to 75°C operating temperature
