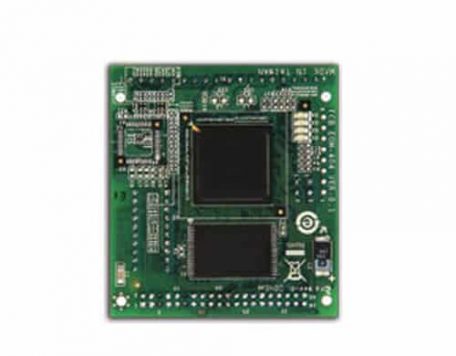

EOM-104 Serisi

• Technology

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.1D for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1p for Class of service

Protocols

SNMPv1/v2c/v3, DHCP Client, BootP, TFTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog

MIB

MIB-II, Ethernet-Like MIB, P-Bridge MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control

IEEE 802.3x flow control

• Switch Properties

MAC Table Size 1 K

Packet Buffer Size 512 kbit

• Interface

Ethernet Ports

EOM-104: 4 10/100BaseT(X) ports
EOM-104-FO: 2 10/100BaseT(X) and 2 100BaseFX ports

Connectors

1 connector with 2 x 20 pins, 2 connectors with 1 x 9 pins, and 1 connector with 2 x 2 pins

Console Port

RS-232 (TxD, RxD, DTR, DSR)

GPIO

4 programmable I/O pins (Available by request only)

• Power Requirements

Input Voltage 3.3 V

Input Current

EOM-104: 0.59 A @ 3.3 V
EOM-104-FO: 1.22 A @ 3.3 V

• Physical Characteristics

Dimensions

54 x 60 x 8.25 mm (2.13 x 2.36 x 0.32 in)

Weight 21 g

• Environmental Limits

Operating Temperature

-40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A, CE Class A

Note

Please check Moxa’s website for the most up-to-date certification status.

• Warranty

Warranty Period 5 years

Details; www.moxa.com/warranty

Mevcut Modeller

EOM-104

Embedded managed Ethernet switch module with 4 10/100BaseT(X) ports, -40 to 75°C operating temperature

EOM-104 Evaluation Kit

Includes an EOM-104 switch module and evaluation board with 4 10/100BaseT(X) ports for testing and application development

EOM-104-FO

Embedded managed Ethernet switch module with 2 10/100BaseT(X) and 2 100BaseFX ports, -40 to 75°C operating temperature

EOM-104-FO Evaluation Kit

Includes an EOM-104-FO switch module and evaluation board with 2 10/100BaseT(X) ports and 2 100BaseFX multi-mode ports (SC connectors) for testing and application development
