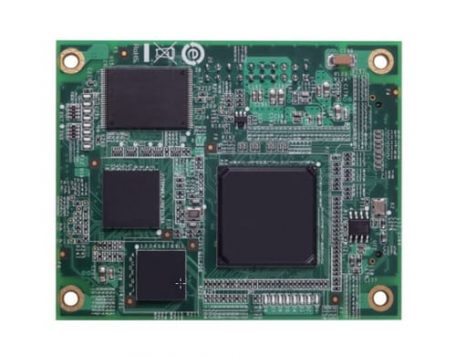

EOM-G103-PHR-PTP Serisi

• Technology

Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX

Protocols

PRP/HSR, SNMPv1/v2c/v3, DHCP Client, BootP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, LLDP, IPv6, SNMP Inform, NTP Client/Server

MIB

TBC

• Interface

Ethernet Ports

3 SGMII (PRP/HSR LAN A/LAN B/INTERLINK)

Connectors

1 connector with 2 x 40 pins, and 1 connector with 2 x 10 pins

Console Port

Ethernet console (SGMII), RS-232 (UART)

GPIO

3 programmable I/O pins

• Power Requirements

Input Voltage

3.3 V

Input Current
Max. TBC @ 3.3 V

• Physical Characteristics

Dimensions

TBC

Weight

TBC

• Environmental Limits

Operating Temperature

-40 to 60°C (-40 to 140°F)
Note: Products with a higher operating temperature are available by special
request.

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A, CE Class A

Note

Please check Moxa’s website for the most up-to-date certification status.

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Mevcut Modeller

EOM-G103-PHR-PTP

IEC 62439-3 managed redundancy module with 3 SGMII pinouts reserved for 2 IEC 62439-3 ports and 1 standard Ethernet port, with an extra 1 SGMII reserved for Ethernet console connection, 3.3 Voperating power input voltage, -40 to 85°C operating temperature

EOM-G103-PHR-PTP-ST (Optional Starter Kits, must be purchased separately)

Includes an EOM-G103-PHR-PTP managed redundancy module and an evaluation board with 3 10/100/1000BaseT(X) and 100/1000BaseSFP slot combo ports for testing and application developmenta
