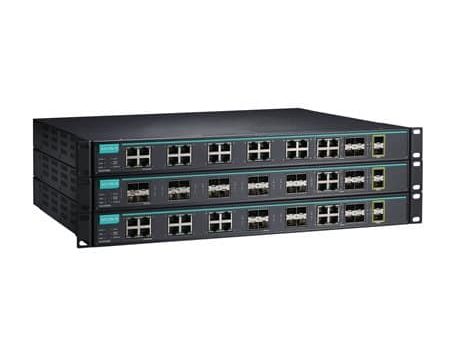

ICS-G7526A/ICS-G7528A Serisi

Technology

IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZX

IEEE 802.3ae for 10 Gigabit Ethernet

IEEE 802.3af/at for PoE/PoE+ output

IEEE 802.3x for Flow Control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1Q for VLAN Tagging

IEEE 802.1p for Class of Service

IEEE 802.1X for Authentication

IEEE 802.3ad for Port Trunk with LACP

Protocols

IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, LLDP, IEEE 1588 PTP V2, EtherNet/IP, Modbus/TCP, SNMP Inform, NTP Server/Client, IPv6 (ICS-G7700A series)

Layer 3 Switching      Static routing, RIP V1/V2, OSPF, DVMRP, PIM-DM, PIM-SM, PIM-SSM (ICS-G7800A series)

Layer 3 Switching Redundancy         VRRP (ICS-G7800A series)

MIB     MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Groups 1, 2, 3, 9

Flow Control   IEEE 802.3x flow control, back pressure flow control

Switch Properties

Priority Queues          8

Max. Number of Available VLANs    256

VLAN ID Range          VID 1 to 4094

IGMP Groups  4096

MAC Table Size          16 K

Packet Buffer Size     12 Mbit

DRAM Size     128 MB

Flash Size       16 MB

Jumbo Frame Size     9.6 KB

Switching Fabric Capacity     ICS-G7748A/G7848A: 96 Gbps

ICS-G7750A/G7850A: 136 Gbps

ICS-G7752A/G7852A: 176 Gbps

Forwarding Rate        Max. 130.95 Mpps (packets per second)

Interface

Gigabit Ethernet        12 slots for 4-port interface modules• 10/100/1000BaseT(X), or

• PoE+ 10/100/1000BaseT(X), or
• 100/1000BaseSFP slots

Note    See the IM-G7000A datasheet for Gigabit Ethernet module product information.

10 Gigabit Ethernet   2 or 4 10GbE SFP+ slots (ICS-G7750A/G7850A and ICS-G7752A/G7852A only)

Console Port   USB-serial console (Type B connector)

Storage Port   USB storage (Type A connector for ABC-02-USB)

LED Indicators STATE, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 1/2/3/4 for 10GbE port (ICS-G7750A/G7850A and ICS-G7752A/G7852A only)

Alarm Contact            1 relay output with current carrying capacity of 2 A @ 30 VDC

Digital Inputs  1 input with the same ground, but electrically isolated from the electronics.• +13 to +30 V for state “1”

• -30 to +1 V for state “0”
• Max. input current: 8 mA

• Power Requirements

Input Voltage

110/220 VAC (85 to 264 VAC)

Input Current

ICS-G7748A/G7848A: Max. 1.02/0.6 A @ 110/220 VAC
ICS-G7750A/G7850A: Max. 1.1/0.64 A @ 110/220 VAC
ICS-G7752A/G7852A: Max. 1.19/0.68 A @ 110/220 VAC

Overload Current Protection

Present

Reverse Polarity Protection

Present

• Physical Characteristics

Housing

IP30 protection

Dimensions

440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in)

Weight

12.9 kg

Installation

19’’ rack mounting

• Environmental Limits

Operating Temperature

-10 to 60°C (14 to 140°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

Safety

UL 60950-1, EN 60950-1

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS

EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11

Rail Traffic

EN 50121-4

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Note

Please check Moxa’s website for the most up-to-date certification status.

• MTBF (mean time between failures)

Time

ICS-G7748A/G7848A: 314,973 hrs
ICS-G7750A/G7850A: 282,329 hrs
ICS-G7752A/G7852A: 274,488 hrs

Database

Telcordia (Bellcore), GB

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Mevcut Modeller

ICS-G7848A-HV-HV

Layer 3 full Gigabit modular managed Ethernet switch system with 12 slots for 4-port Gigabit Ethernet interface modules, 2 isolated power supplies (85 to 264 VAC), for a total of up to 48G ports, 0 to 60°C operating temperature

ICS-G7850A-2XG-HV-HV

Layer 3 full Gigabit modular managed Ethernet switch system with 2 10GbE SFP+ slots, 12 slots for 4-port Gigabit Ethernet interface modules, 2 isolated power supplies (85 to 264 VAC), for a total of up to 48G + 2 10GbE ports, 0 to 60°C operating temperature

ICS-G7852A-4XG-HV-HV

Layer 3 full Gigabit modular managed Ethernet switch system with 4 10GbE SFP+ slots, 12 slots for 4-port Gigabit Ethernet interface modules, 2 isolated power supplies (85 to 264 VAC), for a total of up to 48G + 4 10GbE ports, 0 to 60°C operating temperature

Uyumlu Modeller

IM-G7000A-4GTX

Gigabit Ethernet interface module with 4 10/100/1000BaseT(X) ports, 0 to 60°C operating temperature

IM-G7000A-4GSFP

Gigabit Ethernet interface module with 4 100/1000BaseSFP slots, 0 to 60°C operating temperature

IM-G7000A-4PoE

Gigabit Ethernet PoE+ interface module with 4 10/100/1000BaseT(X) ports, -10 to 60°C operating temperature

Opsiyonel

MXconfig

Industrial network configuration tool

MXstudio Industrial Network Management Suite

Industrial network management suite for installation, operation, maintenance, and diagnostics

MXview

Industrial network management software
