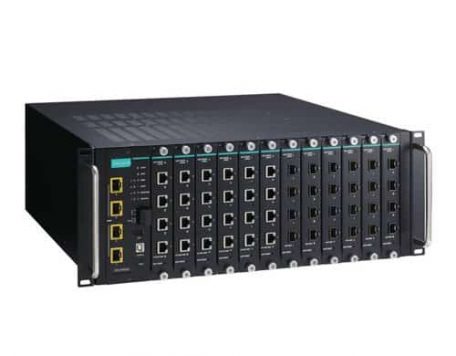

ICS-G7748A/ICS-G7750A/ICS-G7752A Serisi

Technology
Standards IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
IEEE 802.3ae for 10 Gigabit Ethernet
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid Spanning Tree Protocol
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP
Protocols IGMPv1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, Syslog, DHCP Option 66/67/82, SSH, LLDP, IEEE 1588 PTP V2, EtherNet/IP, Modbus/TCP, SNMP Inform, NTP Server/Client, IPv6 (ICS-G7700A series)
MIB MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Groups 1, 2, 3, 9
Flow Control IEEE 802.3x flow control, back pressure flow control

• Switch Properties
Priority Queues 8
Max. Number of Available VLANs 256
VLAN ID Range VID 1 to 4094
IGMP Groups 4096
MAC Table Size 16 K
Packet Buffer Size 12 Mbit
DRAM Size 128 MB
Flash Size 16 MB
Jumbo Frame Size 9.6 KB
Switching Fabric Capacity ICS-G7748A/G7848A: 96 Gbps
ICS-G7750A/G7850A: 136 Gbps
ICS-G7752A/G7852A: 176 Gbps
Forwarding Rate Max. 130.95 Mpps (packets per second)

• Interface
Gigabit Ethernet 12 slots for 4-port interface modules, 10/100/1000BaseT(X) or 100/1000BaseSFP slots
Note See the IM-G7000A datasheet for Gigabit Ethernet module product information.
10 Gigabit Ethernet 2 or 4 10GbE SFP+ slots (ICS-G7750A/G7850A and ICS-G7752A/G7852A only)
Console Port USB-serial console (Type B connector)
Storage Port USB storage (Type A connector for ABC-02-USB)
LED Indicators STATE, PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 1/2/3/4 for 10GbE port (ICS-G7750A/G7850A and ICS-G7752A/G7852A only)
Alarm Contact 1 relay output with current carrying capacity of 2 A @ 30 VDC
Digital Inputs 1 input with the same ground, but electrically isolated from the electronics.• +13 to +30 V for state “1”
• -30 to +1 V for state “0”
• Max. input current: 8 mA

• Power Requirements
Input Voltage 110/220 VAC (85 to 264 VAC)
Input Current ICS-G7748A/G7848A: Max. 1.02/0.6 A @ 110/220 VAC
ICS-G7750A/G7850A: Max. 1.1/0.64 A @ 110/220 VAC
ICS-G7752A/G7852A: Max. 1.19/0.68 A @ 110/220 VAC
Overload Current Protection Present
Reverse Polarity Protection Present

• Physical Characteristics
Housing IP30 protection
Dimensions 440 x 176 x 523.8 mm (17.32 x 6.93 x 20.62 in)
Weight 12.9 kg
Installation 19’’ rack mounting

• Environmental Limits
Operating Temperature -10 to 60°C (14 to 140°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)

• Standards and Certifications
Safety UL 60950-1, EN 60950-1
EMI FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11
Rail Traffic EN 50121-4
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Vibration IEC 60068-2-6
Note Please check Moxa’s website for the most up-to-date certification status.

• MTBF (mean time between failures)
Time ICS-G7748A/G7848A: 314,973 hrs
ICS-G7750A/G7850A: 282,329 hrs
ICS-G7752A/G7852A: 274,488 hrs
Database Telcordia (Bellcore), GB

• Warranty
Warranty Period 5 years
Details See www.moxa.com/warranty

Mevcut Modeller

ICS-G7748A-HV-HV

Full Gigabit modular managed Ethernet switch system with 12 slots for 4-port Gigabit Ethernet interface modules, 2 isolated power supplies (85 to 264 VAC), for a total of up to 48G ports, 0 to 60°C operating temperature

ICS-G7750A-2XG-HV-HV

Full Gigabit modular managed Ethernet switch system with 2 10GbE SFP+ slots, 12 slots for 4-port Gigabit Ethernet interface modules, 2 isolated power supplies (85 to 264 VAC), for a total of up to 48G + 2 10GbE ports, 0 to 60°C operating temperature

ICS-G7752A-4XG-HV-HV

Full Gigabit modular managed Ethernet switch system with 4 10GbE SFP+ slots, 12 slots for 4-port Gigabit Ethernet interface modules, 2 isolated power supplies (85 to 264 VAC), for a total of up to 48G + 4 10GbE ports, 0 to 60°C operating temperature

Uyumlu Modüller

M-G7000A-4GTX

Gigabit Ethernet interface module with 4 10/100/1000BaseT(X) ports, 0 to 60°C operating temperature

IM-G7000A-4GSFP

Gigabit Ethernet interface module with 4 100/1000BaseSFP slots, 0 to 60°C operating temperature

IM-G7000A-4PoE

Gigabit Ethernet PoE+ interface module with 4 10/100/1000BaseT(X) ports, -10 to 60°C operating temperature

Opsiyonel

MXconfig

Industrial network configuration tool

MXstudio Industrial Network Management Suite

Industrial network management suite for installation, operation, maintenance, and diagnostics

MXview

Industrial network management software
