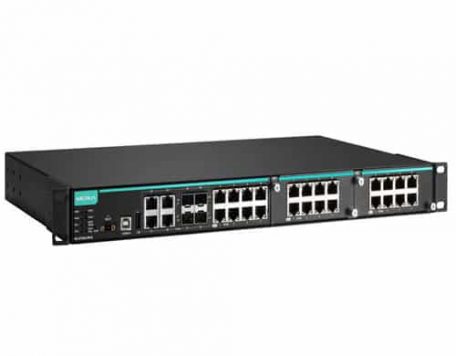

IKS-6728A-8POE Serisi

• Technology

Standards

IEEE 802.3af/at for PoE/PoE+ output
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX
IEEE 802.3x for Flow Control
IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1w for Rapid STP
IEEE 802.1s for Multiple Spanning Tree Protocol
IEEE 802.1Q for VLAN Tagging
IEEE 802.1p for Class of Service
IEEE 802.1X for Authentication
IEEE 802.3ad for Port Trunk with LACP

Protocols

IGMP v1/v2, GMRP, GVRP, SNMPv1/v2c/v3, DHCP Server/Client, BootP, TFTP, SNTP, SMTP, RARP, RMON, HTTP, HTTPS, Telnet, SSH, Syslog, DHCP Option 66/67/82, EtherNet/IP, Modbus/TCP, LLDP, IEEE 1588 PTPv2, IPv6, NTP Server/Client

MIB

MIB-II, Ethernet-like MIB, P-BRIDGE MIB, Q-BRIDGE MIB, Bridge MIB, RSTP MIB, RMON MIB Group 1, 2, 3, 9

Flow Control

IEEE 802.3x flow control, back pressure flow control

• Switch Properties

Priority Queues

4

Max. Number of Available VLANs

64

VLAN ID Range

VID 1 to 4094

IGMP Groups

2048

MAC Table Size

16 K

Packet Buffer Size

12 Mbit

• Interface

Fast Ethernet

8-port 10/100BaseT(X) or PoE+ 10/100BaseT(X) 2 modular slots for any 8-, or 6-port Interface Modules with 10/100BaseT(X), 100BaseFX (SC/ST connector), 100Base SFP, or PoE+ 10/100BaseT(X)

Note

See the IM-6700A datasheet for Fast Ethernet module and PoE+ module product information.

Gigabit Ethernet

4-port 10/100/1000BaseT(X) or 100/1000Base SFP

Console Port

USB-serial console (Type B connector)

Storage Port

USB storage (Type A connector for ABC-02-USB)

System LED Indicators

PWR1, PWR2, EPS1, EPS2, STATE, FAULT, MSTR/HEAD, CPLR/TAIL

Alarm Contact

1 relay output with current carrying capacity of 3 A @ 30 VDC

• Power Requirements

Input Voltage

HV models:
• 110/220 VAC (85 to 264 VAC) for switch system
• 48 VDC (46 to 57 VDC) for PoE system (53 to 57 VDC is recommended for PoE+ devices)
48 VDC models:
• 48 VDC (46 to 57 VDC) for switch and PoE system

Input Current

HV models:
• PWR input current (switch system):
Max. 0.33 A @ 110 VAC
Max. 0.24 A @ 230 VAC
• EPS input current (PoE system):
Max. 0.29 A @ 48 VDC (excluding power consumption of PoE devices)
48 VDC models:
• PWR/EPS input current (switch and PoE systems):
Max. 0.53 A @ 48 VDC (excluding power consumption of PoE devices)

Overload Current Protection

Present

Reverse Polarity Protection

Present

• Physical Characteristics

Housing

IP30 protection

Dimensions

440 x 44 x 280 mm (17.32 x 1.37 x 11.02 in)

Weight

IKS-6728A-8PoE-4GTXSFP-HV-HV-T: 4250 gIKS-6728A-8PoE-4GTXSFP-HV-T: 4150 g
IKS-6728A-8PoE-4GTXSFP-48-48-T: 4250 g
IKS-6728A-8PoE-4GTXSFP-48-T: 4150 g

Installation

19’’ rack mounting

• Environmental Limits

Operating Temperature

-40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

Safety

UL 60950-1, EN 60950-1

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A

EMS

EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3, EN 61000-4-8, EN 61000-4-11

Rail Traffic

EN 50121-4

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Note

Please check Moxa’s website for the most up-to-date certification status.

• MTBF (mean time between failures)

Time

214,975 hrs

Database

Telcordia (Bellcore), GB

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Mevcut Modeller

IKS-6728A-8PoE-4GTXSFP-HV-T

Modular managed rackmount Ethernet PoE+ switch with 8 built-in 10/100BaseT(X) PoE+ ports, 4 Gigabit Copper/SFP combo ports, and 2 slots for Fast Ethernet PoE+ modules. Support up to 24+4G ports with 8 built-in PoE+ ports and up to 24 PoE+ ports, 1 isolated power supply ( 85-264 VAC), -40 to 75°C operating temperature

IKS-6728A-8PoE-4GTXSFP-HV-HV-T

Modular managed rackmount Ethernet PoE+ switch with 8 built-in 10/100BaseT(X) PoE+ ports, 4 Gigabit Copper/SFP combo ports, and 2 slots for Fast Ethernet PoE+ modules. Support up to 24+4G ports with 8 built-in PoE+ ports and up to 24 PoE+ ports, 2 isolated power supplies ( 85-264 VAC), -40 to 75°C operating temperature

IKS-6728A-8PoE-4GTXSFP-48-T

Modular managed rackmount Ethernet PoE+ switch with 8 built-in 10/100BaseT(X) PoE+ ports, 4 Gigabit Copper/SFP combo ports, and 2 slots for Fast Ethernet PoE+ modules. Support up to 24+4G ports with 8 built-in PoE+ ports and up to 24 PoE+ ports, 1 isolated power supply (48 VDC), -40 to 75°C operating temperature

IKS-6728A-8PoE-4GTXSFP-48-48-T

Modular managed rackmount Ethernet PoE+ switch with 8 built-in 10/100BaseT(X) PoE+ ports, 4 Gigabit Copper/SFP combo ports, and 2 slots for Fast Ethernet PoE+ modules. Support up to 24+4G ports with 8 built-in PoE+ ports and up to 24 PoE+ ports, 2 isolated power supplies (48 VDC), -40 to 75°C operating temperature
