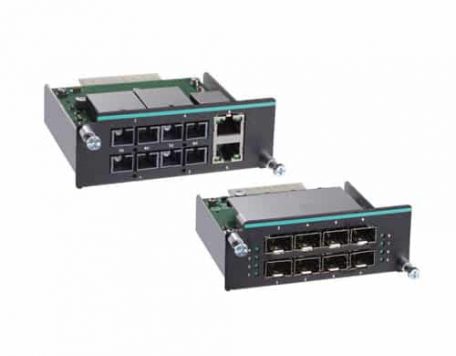

IM-6700A Serisi

Interface

RJ45 Ports

10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection

Fiber Ports

100BaseFX ports (SC/ST or SFP LC connector)

LED Indicators

10/100 for TP port, 100M for fiber port

PoE Ports

10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection, IEEE 802.3af/at standards, Mode A

Power Requirements

Power Consumption

IM-6700A-8TX: 1.43 W
IM-6700A-8PoE: 1.43 W (w/o PoE output)
IM-6700A-8SFP: 9.95 W
IM-6700A-6MSC, -6MST, -6SSC: 8.20 W
IM-6700A-4MSC2TX, -4MST2TX, -4SSC2TX: 5.72 W
IM-6700A-2MSC4TX, -2MST4TX, -2SSC4TX: 3.45 W

Physical Characteristics

Weight

IM-6700A-8TX: 225 g
IM-6700A-8PoE: 260 g
IM-6700A-8SFP: 295 g
IM-6700A-6MSC, -6MST, -6SSC: 390 g
IM-6700A-4MSC2TX, -4MST2TX, -4SSC2TX: 270 g
IM-6700A-2MSC4TX, -2MST4TX, -2SSC4TX: 270 g

Reliability

MTBF (mean time between failures)

IM-6700A-8TX: 10,412,400 hrs
IM-6700A-8SFP: 3,510,110 hrs
IM-6700A-6MSC: 366,119 hrs
IM-6700A-6MST: 365,741 hrs
IM-6700A-6SSC: 365,741 hrs
IM-6700A-4MSC2TX: 530,268 hrs
IM-6700A-4MST2TX: 537,942 hrs
IM-6700A-2MSC4TX: 1,03

Database

Telcordia (Bellcore), GB

Optical Fiber

Table
Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Mevcut Modeller

IM-6700A-8TX

Fast Ethernet module with 8 10/100T(X) ports

IM-6700A-8SFP

Fast Ethernet module with 8 100BaseSFP slots

IM-6700A-6MSC

Fast Ethernet module with 6 multi-mode 100BaseFX ports with SC connectors

IM-6700A-6MST

Fast Ethernet module with 6 multi-mode 100BaseFX ports with ST connectors

IM-6700A-6SSC

Fast Ethernet module with 6 single-mode 100BaseFX ports with SC connectors

IM-6700-2MSC4TX

Fast Ethernet module with 2 multi-mode 100BaseFX ports with SC connectors and 4 10/100BaseT(X) ports

IM-6700A-2MST4TX

Fast Ethernet module with 2 multi-mode 100BaseFX ports with ST connectors and 4 10/100BaseT(X) ports

IM-6700A-2SSC4TX

Fast Ethernet module with 2 single-mode 100BaseFX ports with SC connectors and 4 10/100BaseT(X) ports

IM-6700A-4MSC2TX

Fast Ethernet module with 4 multi-mode 100BaseFX ports with SC connectors and 2 10/100BaseT(X) ports

IM-6700A-4MST2TX

Fast Ethernet module with 4 multi-mode 100BaseFX ports with ST connectors and 2 10/100BaseT(X) ports

IM-6700A-4SSC2TX

Fast Ethernet module with 4 single-mode 100BaseFX ports with SC connectors and 2 10/100BaseT(X) ports

IM-6700A-8PoE

Fast Ethernet PoE+ module with 8 100BaseT(X) PoE/PoE+ ports (Supported by IKS-6728A-8PoE series only)
