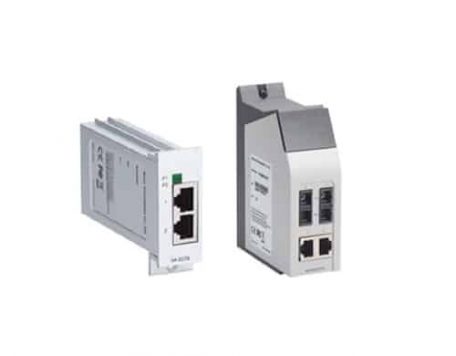

Gigabit Ethernet Interface Modules, IM-2G Series

• Interface

Fiber Ports

1000BaseSFP slot

RJ45 Ports

10/100/1000BaseT(X) auto negotiation speed and auto MDI/MDI-X connection

LED Indicators

Port status

Note

See the SFP-1G datasheet for Gigabit Ethernet SFP module product information.

• Power Requirements

Power Consumption (@ 24 V)

IM-2GTX: 2.96 W
IM-2GSFP: 3.04 W

• Physical Characteristics

Dimensions

24 x 65.9 x 101.1 mm (0.94 x 2.59 x 3.98 in)

Weight

IM-2GTX: 150 g
IM-2GSFP: 148 g

Time

IM-2GTX: 417,521 hrs
IM-2GSFP: 424,955 hrs

Database

Telcordia (Bellcore), GB

Fast Ethernet Interface Modules, IM Series

• Interface

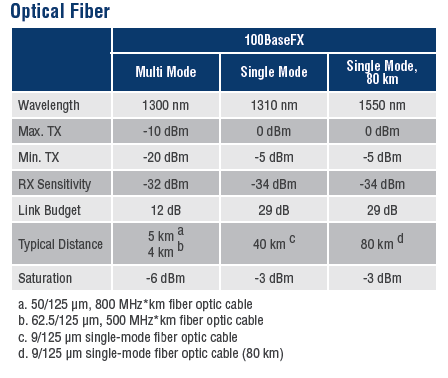

Fiber Ports

100BaseFX ports (SC/ST connector)

RJ45 Ports

10/100BaseT(X) auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection

LED Indicators

PWR, P1, P2, P3, P4 port status

• Power Requirements

Power Consumption (@ 24 V)

IM-4TX: 1.52 W
IM-2MSC/2TX: 2.43 W
IM-2MST/2TX: 2.43 W
IM-2SSC/2TX: 2.43 W
IM-1LSC/3TX: 2.5 W
IM-4MSC: 6.6 W
IM-4MST: 6.6 W
IM-4SSC: 6.6 W

• Physical Characteristics

Housing

IP30 protection

Dimensions

40 x 127.8 x 100 mm (1.57 x 5.03 x 3.94 in)

Weight

IM-4TX: 215 g
IM-2MSC/2TX: 245 g
IM-2MST/2TX: 250 g
IM-2SSC/2TX: 245 g
IM-1LSC/3TX: 235 g
IM-4MSC: 250 g
IM-4MST: 270 g
IM-4SSC: 270 g

• MTBF (mean time between failures)

Time

IM-4TX: 4,403,579 hrs
IM-2MSC/2TX, IM-2MST/2TX, IM-2SSC/2TX: 1,011,453 hrs
IM-1LSC/3TX: 3,924,924 hrs
IM-4MSC, IM-4MST, IM-4SSC: 696,138 hrs

Database

Telcordia (Bellcore), GB

• Warranty

Warranty Period 5 years

Details; www.moxa.com/warranty

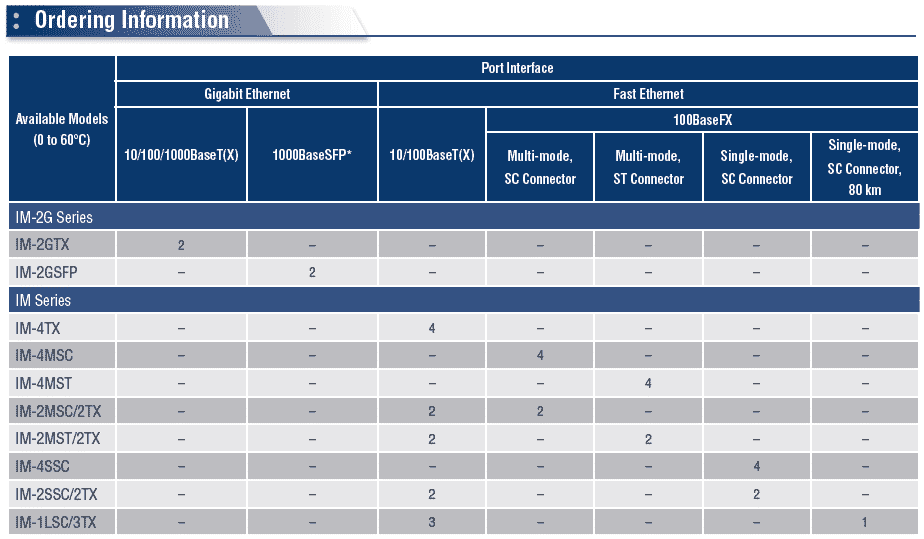

Mevcut Modeller

IM-1LSC/3TX

Fast Ethernet interfaceAC module with 3 10/100BaseT(X) ports and 1 100BaseFX single-mode port (SC connector for 80 km transmission), 0 to 60°C operating temperature

IM-2GSFP

Gigabit Ethernet interface module with 2 1000BaseSFP slots (see the SFP-1G series ordering information for available Gigabit Ethernet SFP modules), 0 to 60°C operating temperature

IM-2GTX

Gigabit Ethernet interface module with 2 10/100/1000BaseT(X) ports, 0 to 60°C operating temperature

IM-2MSC/2TX

Fast Ethernet interface module with 2 10/100BaseT(X) ports and 2 100BaseFX multi-mode ports (SC connectors), 0 to 60°C operating temperature

IM-2MST/2TX

Fast Ethernet interface module with 2 10/100BaseT(X) ports and 2 100BaseFX multi-mode ports (ST connectors), 0 to 60°C operating temperature

IM-2SSC/2TX

Fast Ethernet interface module with 2 10/100BaseT(X) ports and 2 100BaseFX single-mode ports (SC connectors), 0 to 60°C operating temperature

IM-4MSC

Fast Ethernet interface module with 4 100BaseFX multi-mode ports (SC connectors), 0 to 60°C operating temperature

IM-4MST

Fast Ethernet interface module with 4 100BaseFX multi-mode ports (ST connectors), 0 to 60°C operating temperature

IM-4SSC

Fast Ethernet interface module with 4 100BaseFX single-mode ports (SC connectors), 0 to 60°C operating temperature

IM-4TX

Fast Ethernet interface module with 4 10/100BaseT(X) ports, 0 to 60°C operating temperature
