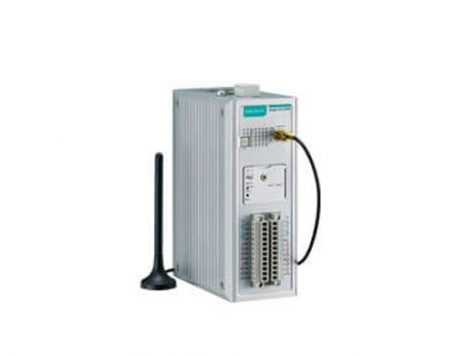

ioLogik 2512-Cellular

• ioLogik 2512 Specifications

• Inputs and Outputs

Digital Inputs

8 channels

Configurable DI/Os

8 channels

Isolation

3k VDC or 2k Vrms

• Digital Input

Sensor Type

Wet Contact (NPN or PNP) and Dry Contact

Input Leakage Current

< 1 mA (@ 30 VDC)

I/O Mode

DI or Event Counter

Dry Contact

• On: short to GND
• Off: open

Wet Contact (DI to COM)

• On: 10 to 30 VDC
• Off: 0 to 3 VDC

Common Type

8 points per COM

Counter Frequency

2.5 kHz

Digital Filtering Time Interval

Software configurable

• Digital Output

Type

Sink

I/O Mode

DO or Pulse Output

Pulse Output Frequency

5 kHz

Over-voltage Protection

45 VDC

Over-current Protection

1.5 A per channel @ 25°C

Over-temperature Shutdown

175°C (min.)

Current Rating

500 mA per channel @ 25°C

•

• Common Specifications

• Cellular

ioLogik 2500-HSPA

• Five-Band UMTS/HSPA+ (WCDMA/FDD), 800/850/AWS1700/1900/2100 MHz• Quad-band GSM/GPRS/EDGE, 850/900/1800/1900 MHz

ioLogik 2500-GPRS

• Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz

HSPA data rates

• Up to 5.76 Mbps upload speed (max.) • Up to 14.4 Mbps download speed (max.)

EDGE Class 12 data rates

• Up to 237 kbps upload speed (max.) • Up to 237 kbps download speed (max.)

GPRS Class 12 data rates

• Up to 85.6 kbps upload speed (max.) • Up to 85.6 kbps download speed (max.)

SIM Control Voltage

3.0/1.8 V

• LAN

Ethernet

• 4 switched 10/100 Mbps RJ45 ports
• 1 optimized port for faster downstream communications with daisy-chained ioLogik E1200 units

Note

The optimized daisy-chain port is not supported on wind industry devices (ioLogik E1261W-T, E1261H-T, or E1263H-T).

Protection

1.5 kV magnetic isolation

Protocols

Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP

• Serial Communication

Serial Ports

2, RJ45, 3-in-1 interface

Protocols

Modbus/RTU (master), serial tunnel mode (client/server)

Serial Line Protection

≥ 8 kV ESD for all signals

Baudrate

1200 to 115200 bps

• Serial Communication Parameters

Parity

None, Odd, Even

Data Bits

5, 6, 7, 8

Stop Bits

1, 1.5, 2

Flow Control

None, RTS/CTS

Baudrate

1200 to 115200 bps

Protocol

Modbus/RTU

• Power Requirements

Power Input

24 VDC nominal, 9 to 48 VDC

Power Consumption

• ioLogik 2512-GPRS: 420 mA @ 24 VDC• ioLogik 2512-HSPA: 460 mA @ 24 VDC
• ioLogik 2542-GPRS: 500 mA @ 24 VDC
• ioLogik 2542-HSPA: 540 mA @ 24 VDC

• Physical Characteristics

Wiring

I/O cable max. 14 AWG

Mounting

DIN rail, wall

• Storage

Expansion Slot

Up to 32 GB microSD™ memory card (SDHC compatible)

Note

For units operating in extreme temperatures, industrial grade, wide-temperature SD cards are required.

• Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -30 to 70°C (-22 to 158°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

Up to 2000 m

Note

Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

• Standards and Certifications

Safety

UL 508, EN 60950-1, NCC

EMI

EN 55022; EN 61000-3-2; EN 61000-3-3;
FCC Part 15, Subpart B, Class A

EMS

EN 55024, EN 61000-4-2, EN 61000-4-3,EN 61000-4-4, EN 61000-4-5, EN 61000-4-6,
EN 61000-4-8, EN 61000-4-11, EN 61000-6-2

Radio

FCC Part 22H, FCC Part 24E,EN 301 489-1, EN 301 489-7, EN 301 511

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Green Product

RoHS, CRoHS, WEEE

Note

Please check Moxa’s website for the most up-to-date certification status.

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Modeller

ioLogik 2512-GPRS

GPRS remote I/O with Click&Go Plus, 8 DIs, 8 DI/Os, -10 to 60°C operating temperature

ioLogik 2512-HSPA

HSPA remote I/O with Click&Go Plus, 8 DIs, 8 DI/Os, -10 to 60°C operating temperature

ioLogik 2512-GPRS-T

GPRS remote I/O with Click&Go Plus, 8 DIs, 8 DI/Os, -30 to 70°C operating temperature

ioLogik 2512-HSPA-T

HSPA remote I/O with Click&Go Plus, 8 DIs, 8 DI/Os, -30 to 70°C operating temperature
