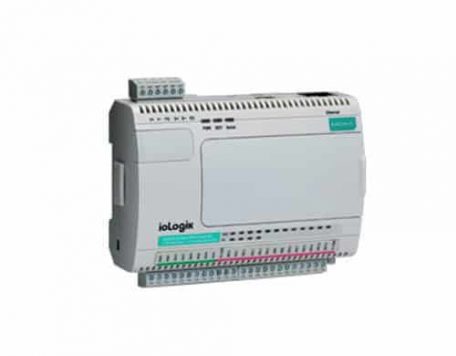

ioLogik E2212 Serisi

ioLogik E2212 Specifications

• Inputs and Outputs

Digital Inputs

8 channels

Digital Outputs

8 channels

Configurable DI/Os

4 channels

Isolation

3k VDC or 2k Vrms

• Digital Input

Sensor Type

Wet Contact (NPN or PNP) and Dry Contact

I/O Mode

DI or Event Counter

Dry Contact

• On: short to GND
• Off: open

Wet Contact (DI to GND)

• On: 0 to 3 VDC
• OFF: 10 to 30 VDC

Common Type

6 points per COM

Counter Frequency

900 Hz

Digital Filtering Time Interval

Software Configurable

• Digital Output

Type

Sink

I/O Mode

DO or Pulse Output

Pulse Output Frequency

1 kHz

Over-voltage Protection

45 VDC

Over-current Protection

2.6 A (4 channels @650 mA)

Over-temperature Shutdown

175°C (min.)

Current Rating

200 mA per channel

• Power Requirements

Power Consumption

136 mA @ 24 VDC

• MTBF (mean time between failures)

Time

217,722 hrs

Database

Telcordia (Bellcore)

Common Specifications

• LAN

Ethernet

1 10/100 Mbps RJ45 port

Protection

1.5 kV magnetic isolation

Protocols

Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP

• Serial Communication

Interface

RS-485-2w: Data+, Data-, GND (3-contact terminal block)

Serial Line Protection

15 kV ESD for all signals

• Serial Communication Parameters

Parity

None

Data Bits

8

Stop Bits

1

Flow Control

None

Baudrate

1200 to 115200 bps

Protocol

Modbus/RTU

• Power Requirements

Power Input

24 VDC nominal, 12 to 36 VDC

• Physical Characteristics

Wiring

I/O cable max. 14 AWG

Dimensions

115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)

Weight

under 250 g

Mounting

DIN rail or wall

• Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

Up to 2000 m

Note

Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

• Standards and Certifications

Safety

UL 508

EMI

EN 61000-3-2; EN 61000-3-3; EN 61000-6-4;
FCC Part 15, Subpart B, Class A

EMS

EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6, EN 61000-4-8,
EN 61000-4-11, EN 61000-6-2

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Green Product

RoHS, CRoHS, WEEE

Note

Please check Moxa’s website for the most up-to-date certification status.

• Warranty

Warranty Period

5 years (excluding ioLogik E2214*)

*Note

Because of the limited lifetime of power relays, products that use that component are covered by a 2-year warranty.

Details

See www.moxa.com/warranty

Modeller

ioLogik E2212

Ethernet Micro RTU Controller with 8 digital inputs, 8 digital outputs, and 4 configurable DIOs

ioLogik E2212-T

Ethernet Micro RTU Controller with 8 digital inputs, 8 digital outputs, and 4 configurable DIOs, -40 to 85°C operating temperature
