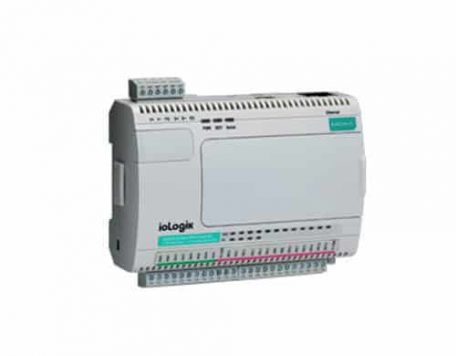

ioLogik E2242 Serisi

ioLogik E2242 Specifications

• Inputs and Outputs

Analog Inputs

4 channels

Configurable DI/Os

12 channels

• Analog Input

Type

Differential input

Resolution

16 bits

I/O Mode

Voltage / Current

Input Range

±150 mV, 0 to 150 mV, ±500 mV, 0 to 500 mV, ±5 V, 0 to 5 V, ±10 V, 0 to 10 V, 0 to 20 mA, 4 to 20 mA

Accuracy

±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C

Sampling Rate

All channels: 32 samples/sec
Per channel: 8 samples/sec
Single channel: 100 samples/sec

Input Impedance

200k ohms (min.)

Built-in Resistor for Current Input

120 ohms

• Digital Input

Sensor Type

Wet Contact (NPN or PNP) and Dry Contact

I/O Mode

DI or event counter

Dry Contact

• On: short to GND
• Off: Open

Wet Contact (DI to GND)

• On: 0 to 3 VDC
• Off: 10 to 30 VDC

Common Type

6 points per COM

Isolation

3k VDC or 2k Vrms

Counter Frequency

900 Hz

Digital Filtering Time Interval

Software selectable

• Digital Output

Type

Sink

I/O Mode

DO or Pulse Output

Pulse Output Frequency

1 kHz

Over-voltage Protection

45 VDC

Over-current Protection

2.6 A (4 channels @ 650 mA)

Over-temperature Shutdown

175°C (min.)

Current Rating

200 mA per channel

Isolation

3k VDC or 2k Vrms

• Power Requirements

Power Consumption

178 mA @ 24 VDC

• MTBF (mean time between failures)

Time

204,391 hrs

Database

Telcordia (Bellcore)

Common Specifications

• LAN

Ethernet

1 10/100 Mbps RJ45 port

Protection

1.5 kV magnetic isolation

Protocols

Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP

• Serial Communication

Interface

RS-485-2w: Data+, Data-, GND (3-contact terminal block)

Serial Line Protection

15 kV ESD for all signals

• Serial Communication Parameters

Parity

None

Data Bits

8

Stop Bits

1

Flow Control

None

Baudrate

1200 to 115200 bps

Protocol

Modbus/RTU

• Power Requirements

Power Input

24 VDC nominal, 12 to 36 VDC

• Physical Characteristics

Wiring

I/O cable max. 14 AWG

Dimensions

115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)

Weight

under 250 g

Mounting

DIN rail or wall

• Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

Up to 2000 m

Note

Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

• Standards and Certifications

Safety

UL 508

EMI

EN 61000-3-2; EN 61000-3-3; EN 61000-6-4;
FCC Part 15, Subpart B, Class A

EMS

EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6, EN 61000-4-8,
EN 61000-4-11, EN 61000-6-2

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Green Product

RoHS, CRoHS, WEEE

Note

Please check Moxa’s website for the most up-to-date certification status.

• Warranty

Warranty Period

5 years (excluding ioLogik E2214*)

*Note

Because of the limited lifetime of power relays, products that use that component are covered by a 2-year warranty.

Details

See www.moxa.com/warranty

Modeller

ioLogik E2242

Ethernet Micro RTU Controller with 4 analog inputs and 12 configurable DIOs, -10 to 60°C operating temperature

ioLogik E2242-T

Ethernet Micro RTU Controller with 4 analog inputs and 12 configurable DIOs, -40 to 75°C operating temperature
