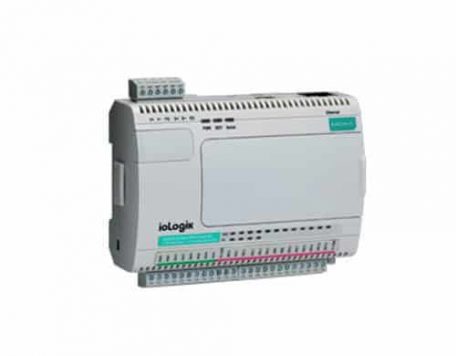

ioLogik E2262 Serisi

ioLogik E2262 Specifications

• Inputs and Outputs

Thermocouple Inputs

8 channels

Digital Outputs

4 channels

• Thermocouple Input

Sensor Type

J (0 to 750°C), K (-200 to 1250°C), T (-200 to 350°C), E (-200 to 900°C), R (-50 to 1600°C), S (-50 to 1760°C), B (600 to 1700°C), N (-200 to 1300°C)

Millivolt Type

• Mode: ±78.126 mV, ±39.062 mV, ±19.532 mV
• Fault and over-voltage protection: -35 to +35 VDC (power off);
-25 to +30 VDC (power on)

Sampling Rate

12 samples/sec (all channels)

Resolution

16 bits

Accuracy

±0.1% FSR @ 25°C
±0.3% FSR @ -10 and 60°C
±0.5% FSR @ -40 and 75°C

Input Impedance

1 M ohms

• Digital Output

Type

Sink

I/O Mode

DO or Pulse Output

Pulse Output Frequency

100 Hz

Over-voltage Protection

45 VDC

Over-current Protection

2.6 A (4 channels @ 650 mA)

Over-temperature Shutdown

175°C

Current Rating

200 mA per channel

Isolation

3k VDC or 2k Vrms

• Power Requirements

Power Consumption

160 mA @ 24 VDC

• MTBF (mean time between failures)

Time

341,063 hrs

Database

Telcordia (Bellcore)

Common Specifications

• LAN

Ethernet

1 10/100 Mbps RJ45 port

Protection

1.5 kV magnetic isolation

Protocols

Modbus/TCP, TCP/IP, UDP, DHCP, BOOTP, SNMP, HTTP, CGI, SNTP, SMTP

• Serial Communication

Interface

RS-485-2w: Data+, Data-, GND (3-contact terminal block)

Serial Line Protection

15 kV ESD for all signals

• Serial Communication Parameters

Parity

None

Data Bits

8

Stop Bits

1

Flow Control

None

Baudrate

1200 to 115200 bps

Protocol

Modbus/RTU

• Power Requirements

Power Input

24 VDC nominal, 12 to 36 VDC

• Physical Characteristics

Wiring

I/O cable max. 14 AWG

Dimensions

115 x 79 x 45.6 mm (4.53 x 3.11 x 1.80 in)

Weight

under 250 g

Mounting

DIN rail or wall

• Environmental Limits

Operating Temperature

Standard Models: -10 to 60°C (14 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

Up to 2000 m

Note

Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

• Standards and Certifications

Safety

UL 508

EMI

EN 61000-3-2; EN 61000-3-3; EN 61000-6-4;
FCC Part 15, Subpart B, Class A

EMS

EN 61000-4-2, EN 61000-4-3, EN 61000-4-4,
EN 61000-4-5, EN 61000-4-6, EN 61000-4-8,
EN 61000-4-11, EN 61000-6-2

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Green Product

RoHS, CRoHS, WEEE

Note

Please check Moxa’s website for the most up-to-date certification status.

• Warranty

Warranty Period

5 years (excluding ioLogik E2214*)

*Note

Because of the limited lifetime of power relays, products that use that component are covered by a 2-year warranty.

Details

See www.moxa.com/warranty

Modeller

ioLogik E2262

Ethernet Micro RTU Controller with 8 thermocouple inputs and 4 digital outputs

ioLogik E2262-T

Ethernet Micro RTU Controller with 8 thermocouple inputs and 4 digital outputs, -40 to 85°C operating temperature
