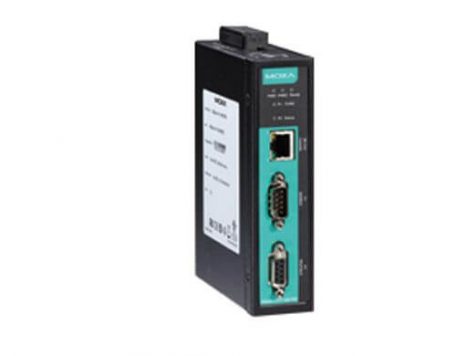

MGATE 5101-PBM-MN Serisi

• Ethernet Interface

Number of Ports

1

Speed

10/100 Mbps, Auto MDI/MDIX

Connector

8-pin RJ45

Magnetic Isolation Protection

1.5 kV (built-in)

Modbus TCP • Operation Modes

Modbus TCP Slave/Master

• PROFIBUS Interface

Protocol

PROFIBUS DP-V1 Master

Number of Ports

1

Data Rate

9600 bps to 12 Mbps

Connector

DB9 female

Isolation

2 kV (built-in)

• Serial Signals (Serial Console)

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

• Software

Configuration Options

Serial Console, Windows Utility, Web Console (HTTP/HTTPS), Telnet/SSH Console

Utilities

MGate Manager for Windows 2000/XP/2003/Vista/Server 2008/7/8 (x86/x64), Windows Server 2008 R2/2012 (x64)

Support

AutoScan, MXview, SNMP (v1, v2, v3), Private MIB

• Physical Characteristics

Housing

Metal, IP30 protection

Weight

500 g

Dimensions

36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)

• Environmental Limits

Operating Temperature

Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

Up to 2000 m (795 hPa), higher altitudes on demand

Note

Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

• Power Requirements

Input Voltage

12 to 48 VDC

Power Connector

Terminal block

Power Consumption

365 mA @ 12 VDC

• Standards and Certifications

Safety

UL 60950-1, EN 60950-1

Hazardous Location

UL/cUL Class 1 Division 2 Groups A/B/C/D (Pending),
ATEX Zone 2 Ex nA nC IIC T3 Gc (Pending),
IECEx (Pending)

EMC

CE, FCC

EMI

EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS

EN 55024,
EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 3,
EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3,
EN 61000-4-8 (PFMF) Level 1

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

• Reliability

MTBF (mean time between failures)

540,026 hrs

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Modeller

MGate 5101-PBM-MN

1-port PROFIBUS master-to-Modbus TCP gateway, 12-48 VDC, 0 to 60°C operating temperature

MGate 5101-PBM-MN-T

1-port PROFIBUS master-to-Modbus TCP gateway, 12-48 VDC, -40 to 75°C operating temperature

Opsiyonel Aksesuarlar

Yazılım

MXview

Industrial network management software
