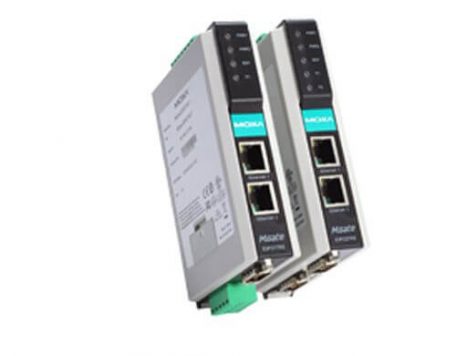

MGATE MB3170/MB3270 Serisi

• Ethernet Interface

Protocol

Modbus TCP

Number of Ports

2 (1 IP, Ethernet cascade)

Speed

10/100 Mbps, Auto MDI/MDIX

Connector

8-pin RJ45

Magnetic Isolation Protection

1.5 kV (built-in)

• Serial Interface

Protocol

Modbus RTU/ASCII Slave/Master

Number of Ports

MB3170/3170I: 1
MB3270/3270I: 2

Serial Standards

RS-232/422/485, software selectable

Connectors

MB3170/3170I: DB9 male for RS-232, terminal block for RS-422/485
MB3270/3270I: DB9 male x 2

Magnetic Isolation Protection

2 kV (for “I” models)

ESD Protection

15 kV for all signals

RS-485 Data Direction Control

ADDC® (automatic data direction control)

Pull High/Low Resistor for RS-485

1 kΩ, 150 kΩ

Terminator for RS-485

120 Ω

• Serial Communication Parameters

Data Bits

7, 8

Stop Bits

1, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

RTS/CTS, DTR/DSR (RS-232 only)

Baudrate

50 bps to 921.6 kbps

• Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

• Software

Configuration Options

Web Console, Serial Console, Telnet Console, Windows Utility

Utility

MGate Manager for Windows 2000/XP/2003/Vista/Server 2008/7/8 (x86/x64), Windows Server 2008 R2/2012 (x64)

Multi-master and Multi-drop

Master mode: 32 TCP slaves
Slave mode: 16 TCP masters (request queue 32-deep for each master)

Support

Smart Routing, Serial Redirection, ProCOM, Priority Control, MXview, SNMP v1 (read only)

• Physical Characteristics

Housing

Plastic

Weight

MGate MB3170: 360 g
MGate MB3270: 380 g

Dimensions

Without ears: 29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)
With ears extended: 29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)

• Environmental Limits

Operating Temperature

Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

Up to 2000 m (795 hPa), higher altitudes on demand

Note

Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

• Power Requirements

Input Voltage

12 to 48 VDC

Power Connector

Terminal block

Power Consumption

MGate MB3170: 435 mA (max.)
MGate MB3170I: 555 mA (max.)
MGate MB3270: 435 mA (max.)
MGate MB3270I: 510 mA (max.)

Relay Output

1 digital relay output to alarm (normal close): Current carrying capacity 1 A @ 30 VDC

• Standards and Certifications

Safety

UL 508, EN 60950-1

Hazardous Location

UL/cUL Class 1 Division 2 Groups A/B/C/D,
ATEX Zone 2 Ex nA IIC T3 Gc, IECEx (-IEX model only)

EMC

CE, FCC

EMI

EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS

EN 55024,
EN 61000-4-2 (ESD) Level 3,
EN 61000-4-3 (RS) Level 3,
EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 3,
EN 61000-4-8 (PFMF) Level 1,
EN 61000-4-11

Marine

DNV

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

• Reliability

MTBF (mean time between failures)

MGate MB3170: 210,794 hrs
MGate MB3270: 125,234 hrs

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Modeller

MGate MB3170

1-port advanced Modbus gateway, 0 to 55°C operating temperature

MGate MB3170I

1-port advanced Modbus gateway with 2 KV isolation, 0 to 55°C operating temperature

MGate MB3270

2-port advanced Modbus gateway, 0 to 55°C operating temperature

MGate MB3270I

2-port advanced Modbus gateway with 2 KV isolation, 0 to 55°C operating temperature

MGate MB3170-T

1-port advanced Modbus gateway, -40 to 75°C operating temperature

MGate MB3170I-T

1-port advanced Modbus gateway with 2 KV isolation, -40 to 75°C operating temperature

MGate MB3270-T

2-port advanced Modbus gateway, -40 to 75°C operating temperature

MGate MB3270I-T

2-port advanced Modbus gateway with 2 KV isolation, -40 to 75°C operating temperature

MGate MB3170-IEX

1-port advanced Modbus gateway, 0 to 55°C operating temperature, IECEx certification

MGate MB3170I-IEX

1-port advanced Modbus gateway with 2 kV isolation, 0 to 55°C operating temperature, IECEx certification

MGate MB3270-IEX

2-port advanced Modbus gateway, 0 to 55°C operating temperature, IECEx certification

MGate MB3270I-IEX

2-port advanced Modbus gateway with 2 kV isolation, 0 to 55°C operating temperature, IECEx certification

MGate MB3170-T-IEX

1-port advanced Modbus gateway, -40 to 75°C operating temperature, IECEx certification

MGate MB3170I-T-IEX

1-port advanced Modbus gateway with 2 kV isolation, -40 to 75°C operating temperature, IECEx certification

MGate MB3270-T-IEX

2-port advanced Modbus gateway, -40 to 75°C operating temperature, IECEx certification

MGate MB3270I-T-IEX

2-port advanced Modbus gateway with 2 kV isolation, -40 to 75°C operating temperature, IECEx certification

Opsiyonel Aksesuarlar

Yazılım

MXview

Industrial network management software

Montaj Kiti

DK35A

DIN-Rail Mounting Kit (35 mm)

Konnektörler

Mini DB9F-to-TB

Mini Female DB9 to Terminal Block

Güç Kaynakları

DR-4524

45W/2A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -10 to 50°C operating temperature

DR-75-24

75W/3.2A DIN-Rail 24 VDC power supply with universal 85 to 264 VAC or 120-370 VDC input, -10 to 60°C operating temperature

DR-120-24

120W/5A DIN-Rail 24 VDC power supply with universal 88 to 132 VAC or 176 to 264 VAC input by switch, or 248-370 VDC , -10 to 60°C operating temperature
