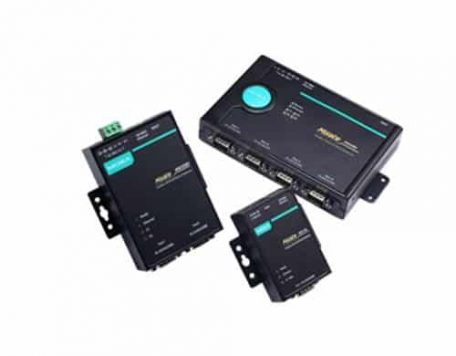

MGATE MB3180/MB3280/MB3480 Serisi

• Ethernet Interface

Protocol

Modbus TCP

Number of Ports

1

Speed

10/100 Mbps, Auto MDI/MDIX

Connector

8-pin RJ45

Magnetic Isolation Protection

1.5 kV (built-in)

• Serial Interface

Protocol

Modbus RTU/ASCII Slave/Master

Number of Ports

MB3180: 1
MB3280: 2
MB3480: 4

Serial Standards

RS-232/422/485, software selectable

Connectors

DB9 male

ESD Protection

15 kV for all signals

RS-485 Data Direction Control

ADDC® (automatic data direction control)

• Serial Communication Parameters

Data Bits

7, 8

Stop Bits

1, 2

Parity

None, Even, Odd, Space, Mark

Flow Control

RTS/CTS, DTR/DSR (RS-232 only)

Baudrate

50 bps to 921.6 kbps

• Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

• Software

Configuration Options

Web Console, Serial Console, Telnet Console, Windows Utility

Utilities

MGate Manager for Windows 2000/XP/2003/Vista/Server 2008/7/8 (x86/x64), Windows Server 2008 R2/2012 (x64)

Multi-master and Multi-drop

Master mode: 32 TCP slaves
Slave mode: 16 TCP masters (request queue 32-deep for each master)

Support

Smart Routing, MXview, SNMP v1 (read only)

• Physical Characteristics

Housing

Metal, IP30 protection

Weight

MGate MB3180: 340 g
MGate MB3280: 360 g
MGate MB3480: 740 g

Dimensions

Without ears:
MB3180: 22 x 52 x 80 mm (0.87 x 2.05 x 3.15 in)
MB3280: 22 x 77 x 111 mm (0.87 x 3.03 x 4.37 in)
MB3480: 35.5 x 102.7 x 157.2 mm (1.40 x 4.04 x 6.19 in)
With ears:
MB3180: 22 x 75 x 80 mm (0.87 x 2.95 x 3.15 in)
MB3280: 22 x 100

• Environmental Limits

Operating Temperature

0 to 60°C (32 to 140°F)

Storage Temperature

-40 to 85 °C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Altitude

Up to 2000 m (795 hPa), higher altitudes on demand

Note

Please contact Moxa if you require products guaranteed to function properly at higher altitudes.

• Power Requirements

Input Voltage

12 to 48 VDC

Power Connector

MGate MB3180: Power jack
MGate MB3280/3480: Power jack and terminal block

Power Consumption

MGate M3180: 200 mA (max.)
MGate M3280: 250 mA (max.)
MGate M3480: 385 mA (max.)

• Standards and Certifications

Safety

UL 60950-1, EN 60950-1

EMC

CE, FCC

EMI

EN 55022 Class A, FCC Part 15 Subpart B Class A

EMS

EN 55024,
EN 61000-4-2 (ESD) Level 2,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 2,
EN 61000-4-5 (Surge) Level 2,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 (PFMF) Level 1,
EN 61000-4-11

• Reliability

MTBF (mean time between failures)

MGate M3180: 628,376 hrs
MGate M3280: 503,029 hrs
MGate M3480: 295,812 hrs

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Modeller

MGate MB3180

1-port standard Modbus gateway

MGate MB3280

2-port standard Modbus gateway

MGate MB3480

4-port standard Modbus gateway

Opsiyonel Aksesuarlar

Yazılım

MXview

Industrial network management software

Montaj Kiti

DK35A

DIN-Rail Mounting Kit (35 mm)

Konnektörler

Mini DB9F-to-TB

Mini Female DB9 to Terminal Block
