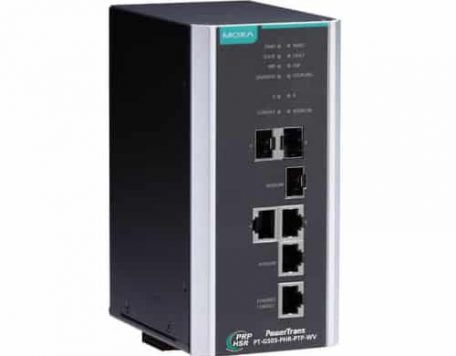

PT-G503-PHR-PTP Serisi

• Technology

Standards

IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X) and 100BaseFX
IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3z for 1000BaseX

Protocols

PRP/HSR, SNMPv1/v2c/v3, DHCP Client, BootP, SNTP, SMTP, RARP, RMON, HTTP, Telnet, Syslog, LLDP, IPv6, SNMP Inform, NTP Client/Server

MIB

IEC 62439-3 MIB

• Interface

Gigabit Ethernet

3 x 10/100/1000BaseT(X) ports or 100/1000BaseSFP combo ports

Console Port

Ethernet console (10/100/1000 Mbps RJ45), USB-serial console (Type B connector)

Storage Port

USB storage (Type A connector for ABC-02-USB)

Button

Reset button

Alarm Contact

1 relay output with current carrying capacity of 1 A @ 24 VDC

Digital Inputs

1 input with the same ground, but electrically isolated from the electronics• +13 to +30V for state “1”
• -30 to +3V for state “0”
• Max. input current: 8 mA

System LED Indicators

PWR1, PWR2, STATE, FAULT, PRP, HSR, QUADBOX, COUPLING

Port LED Indicators

A, B, ETHERNET CONSOLE, INTERLINK

• Power Requirements

Input Voltage

• WV: 24/48 VDC (18 to 72 VDC)
• HV: 110/220 VDC/VAC (88 to 300 VDC, 85 to 264 VAC)

Input Current

• Max. 0.660/0.360 A @ 24/48 VDC
• Max. 0.150/0.080 A @ 110/220 VDC
• Max. 0.260/0.170 A @ 110/220 VAC

Overload Current Protection

Present

Connection

5-pin terminal block

Reverse Polarity Protection

Present

• Physical Characteristics

Housing

IP40 protection

Dimensions

80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in)

Weight

1210 g

Installation

DIN rail mounting

• Environmental Limits

Operating Temperature

-40 to 85°C (-40 to 185°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

High Availability Automation Networks

IEC 62439-3

Safety

UL 508

EMI

FCC Part 15 Subpart B Class A, EN 55022 Class A

Power Automation

IEC 61850-3, IEEE 1613

Rail Traffic

EN 50121-4

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Mevcut Modeller

PT-G503-PHR-PTP-WV

IEC 61850-3 and IEC 62439-3 full Gigabit managed redundancy box, with 3 10/100/1000BaseT(X) ports or 100/1000Base SFP ports, 1 10/100/1000BaseT(X) Ethernet console port, 1 isolated dual power supply(24/48 VDC), -40 to 85°C operating temperature

PT-G503-PHR-PTP-HV

IEC 61850-3 and IEC 62439-3 full Gigabit managed redundancy box, with 3 10/100/1000BaseT(X) ports or 100/1000Base SFP ports, 1 10/100/1000BaseT(X) Ethernet console port, 1 isolated dual power supply(88 to 300 VDC or 85 to 264 VAC), -40 to 85°C operating temperature
