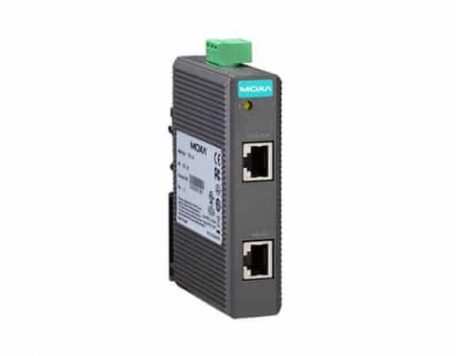

SPL-24 Serisi

• Technology

Standards

IEEE 802.3af for Power-over-Ethernet IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X)

• Interface

RJ45 Ports

10/100BaseT(X) for PoE IN and DATA OUT

LED Indicators

Power

• Power Requirements

Input Voltage

44 to 75 VDC (PoE)

Output Voltage

24 VDC

Overload Current Protection

400 mA @ 48 VDC input

Connection

1 removable 3-contact terminal block for output

Output Power

Max. 12.95 watts (0.54 A @ 24 VDC)

• Physical Characteristics

Housing

Plastic, IP30 protection

Dimensions

24.9 × 100 × 86.2 mm (0.98 x 3.93 x 3.39 in)

Weight

95 g

Installation

DIN-rail mounting

• Environmental Limits

Operating Temperature

Standard Models: 0 to 60°C (32 to 140°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

• Standards and Certifications

Safety

UL 69050-1

EMI

FCC Part 15 Subpart B Class B, EN 55022 Class A

EMS

EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8

Marine

DNV, GL, LR, ABS, NK

Shock

IEC 60068-2-27

Freefall

IEC 60068-2-32

Vibration

IEC 60068-2-6

Note

Please check Moxa’s website for the most up-to-date certification status.

• MTBF (mean time between failures)

Time

5,104,703 hrs

Database

MIL-HDBK-217F, GB 25°C

• Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Mevcut Modeller

SPL-24

PoE splitter with maximum output of 12.95W at 24 VDC, 0 to 60°C operating temperature

SPL-24-T

PoE splitter with maximum output of 12.95W at 24 VDC, -40 to 75°C operating temperature
