Lantronix SLC 8000

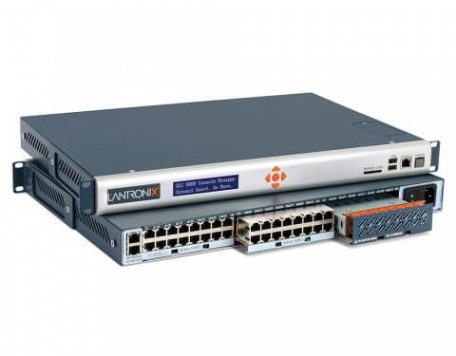

slc-8000 resim

Lantronix SLC 8000 Product

Lantronix SLC 8000 is the industry’s first advanced modular console manager that provides secure access to IT equipment with RS-232 and USB console, while minimizing deployment headaches and time.

  • Enables custom “mix-and-match” configurations with USB and RS-232 modules
  • Provides multiple layers of out-of-band access with optional dialup and cellular technologies
  • Reduces operating costs and security risks by eliminating the need for on-site interventions
  • Simplifies service deployments and balances CAPEX and OPEX with its modular design
  • Minimizes cable clutter with software-reversible device port pins
  • Increases testing productivity and efficiency as a DUT (device under test) aggregation tool
  • Protects management interfaces with authentication and FIPS 140-2 compliant encryption



Future Proof Your Secure Out-Of-Band Management Solution

The Lantronix SLC 8000 advanced console manager is the industry’s first modular console server that provides secure remote access to IT equipment, while reducing deployment costs and time.



Did You Know?

Like modern laptops and computing devices, modern IT equipment vendors are providing USB console ports as an extension or a replacement of RS-232. The Lantronix SLC 8000 allows you to make that transition at your own pace.



Centrally Monitor, Manage, and Troubleshoot

Designed for system administrators, quality and test engineers, the SLC 8000 provides easy, secure administration and management of IT equipment from anywhere and at any time. Users can access the SLC 8000 device ports via Telnet/SSH, or a web browser-based console client without any proprietary software. Any IT asset that provides console or serial port management services can be managed remotely and locally with the same interface and capabilities. The SLC 8000 enables users to leverage the command line interface of most IT equipment for reconfiguring, rebooting and reloading firmware from a single point of contact. This can be done over an in-band network with dual Gigabit Ethernet connections for both public and management networks, or through out-of-band connections including dial-up (optional internal modem, sold separately) and cellular connectivity (PremierWave® XC HSPA+ intelligent gateway, sold separately). Users can securely access and control a wide variety of IT and network equipment, including Linux, Unix or Windows® servers, routers, switches, firewalls, PBXs, UPSs, and even building access devices through their serial ports.



Modular Design

The modular design of SLC 8000 allows users to keep the main unit and simply add or swap modules to expand the number of device ports, upgrade from a single power supply to dual, and easily introduce new serial interfaces such as USB to support a combination of existing and new IT equipment that are connected. This reduces the time required to develop and deploy new services, and this flexibility minimizes capital expenditures while offering easy scalability and upgrades.



Integrated Security

Protecting IT resources is a top priority. The SLC 8000 provides security features such as SSL and SSH for data encryption in addition to remote authentication for integration with other systems already in place. For added protection, the SLC 8000 also includes firewall features to reject connection attempts or block ports and has NIST-certified AES encryption. The SLC 8000 also supports FIPS 140-2 certified mode for government and military applications.

Accessibility

  • In-Band (10/100/1000 Base – Ethernet) – Dual Ethernet ports with bonding
  • Out-of-Band (Local terminal, Internal Modem or USB Modem)



Security and Authentication

  • Secure Shell (SSH v1, v2, Public Key)
  • Secure Sockets Layer (SSL v3, TLS v1)
  • Packet filtering (firewall)
  • Per port user permissions
  • Configurable user rights and custom groups
  • Remote authentication: LDAP, RADIUS, Kerberos, TACACS+, Active Directory, NIS
  • Local username/password
  • FIPS 140-2 compliant cryptography (Certificate #1878)



Serial Device Port Access

  • Software reversible device port pins
  • Telnet/SSH to SLC command line
  • Telnet/SSH/RAW-TCP direct to IP address and port number
  • Web Telnet/SSH
  • Multiple concurrent Telnet/SSH sessions
  • Simultaneous access on the same port
  • No inadvertent “breaks” – Sun break-safe
  • Customizable multi-level user menus
  • USB port modem access
  • Automatic port-initiated connections to network host or neighboring port
  • Enable terminal login on any device port
  • SD card and USB



Data Capture and Notification

  • Port buffering – 256 KB per port
  • Port logging to local files, syslog, USB thumb drive, SD card, and NFS share
  • NFS files (simultaneous)
  • System event logs
  • Console event notification via email
  • Event string recognition (RegExp)

Management

  • Front panel keypad and LCD display for network setup
  • Quick setup and configuration web interface (SSL)
  • CLI setup script
  • Command line interface (Telnet, SSH, Web Telnet/SSH or direct serial)
  • SNMP (MIB II) compatible—v1, v2, v3, custom MIB’s
  • Integrated power management support—Lantronix SLP® and Server Technology PDU
  • Integrated support for Sensorsoft devices
  • Diagnostics and port status counters
  • Performance monitoring utility
  • Packet generation utility
  • Network trace utility
  • Configuration audit log
  • Active user list display, port monitoring and timeout
  • Local subnet search for other SLC’s
  • Maximum of 352 concurrent users and maximum 10 users per device port at 9600 baud rate (typical)



Additional Protocols Supported

  • DHCP and BOOTP for dynamic IP address assignment
  • NTP for time synchronization
  • FTP, TFTP, SFTP, SCP client for file transfers
  • DNS for text-to-IP address name resolution
  • SSH, SSL, Telnet and UDP, PPP with PAP/CHAP, NFS and CIFS for connections in and out of the SLC
  • IPsec/VPN
  • RIP and RIPv2



Interfaces

  • Network: Dual 10/100/1000 Base-T RJ45 Ethernet
  • Devices: 8, 16, 32, 48 Serial, 300 to 230400 bps
  • Console: RS-232 (RJ45), 300 to 230400 bps
  • USB 2.0 High Speed, Full Speed, Low Speed
  • SD card slot: SD and SDHC

Operating System

  • Embedded Linux



Power Requirements

  • AC model input (single or dual): 100-240 VAC, 50 to 60 Hz
  • DC model input (dual): -20 to –72 VDC
  • Power consumption: Less than 30W



Certification

  • FCC Part 15, CE (EN55022, EN55024, EN60950), CSA, VCCI, UL/CUL, C-Tick, CB Scheme, NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197, IPv6 Ready, FIPS 140-2



Central Management

  • Compatible with Lantronix’ vSLM central management software



Environmental

  • Operating: 0 to 50⁰ C (32 to 122⁰ F), 30 to 90%RH, non-condensing
  • Storage: -20 to 80⁰ C (-4 to 176⁰ F), 10 to 90%RH, non-condensing
  • Heat Flow Rate: 68 BTU per hour



Physical

  • Front-mid-rear mounting brackets
  • Dimensions (L x W x H): 30.5 x 43.8 x 4.4 cm (12 x 17.25 x 1.75 in), 1U
  • Weight: 11.1 lbs. maximum, depending on option
  • Shipping weight: 15.1 lbs. maximum, depending on option

Warranty

  • 3 year limited warranty
