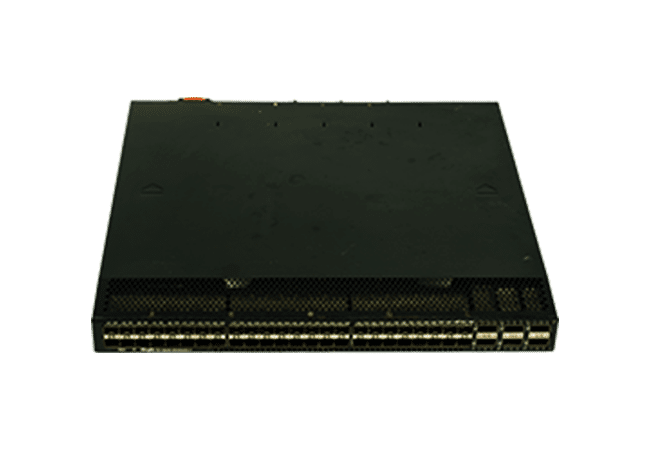

Ruijie’nin RG-S6220H serisi, yeni nesil veri merkezlerini ve bulut bilişim hizmetlerini güçlendirmek için tasarlanmış endüstri lideri, yüksek şeffaflık ve sürdürülebilirlik ile engellemesiz, birleşik ve sanallaştırılmış anahtarlama performansı sunar. Yüksek performanslı ve düşük maliyetli RG-S6220H Anahtar Serisi, trafik dalgalanması ve yüksek dağıtım maliyeti gibi sorunları çözerek bulut bilişim ağı çözümleri için sağlam bir temel oluşturur. RG-S6220H Anahtar Serisi, veri merkezi ve bulut bilişim sanallaştırma trendine uymak için, birden fazla fiziksel ekipmanın tek bir cihazda sanallaştırılmasını sağlayan, ağ yapısını önemli ölçüde basitleştiren ve ekipman güvenilirliğini artıran endüstri lideri VSU 2.0 teknolojisini kullanır.
Zengin özelliklere sahip anahtarlar, yeni nesil veri merkezleri için uçtan uca QoS ve mükemmel sanallaştırma performansı sağlar. Seri, büyük veri merkezi ağlarının erişim katmanı, orta ve küçük veri merkezi ağlarının yakınsama veya çekirdek katmanı, büyük kampüs ağlarının yakınsama katmanı ve orta ve küçük ağların çekirdek katmanı için idealdir.
RG-S6220H Anahtar Serisinin öne çıkan özellikleri:
• Veri Merkezi Sanallaştırma (EVPN VXVLAN, VSU 2.0, OpenFlow) Desteği
• Güçlü Önbelleğe Alma Kapasitesi ile Yüksek Performans
• 48 adede kadar 10GBase-X/Base-T Bağlantı Noktası ve 32 adet 40GBase-X Bağlantı Noktası
• Gelişmiş Katman 3 Yönlendirme Desteği
• Güç ve Fan Yedekliliği Desteği (Güç modülü sistem çalışırken değiştirilebilir.)
Model | RG-S6220-48XS6QXS-H | RG-S6220-48XT6QXS-H | RG-S6220-32QXS-H |
Ports | 48 fixed 10G SFP+ ports | 48 fixed 10GBASE-T ports (RJ 45) | 32 fixed 40G QSFP+ ports |
Modular Power Slots | 2 | ||
Fan Slots | 3 | ||
Management Ports | 1 console port 1 USB 2.0 port 1 mini USB console port | ||
Switching Capacity | 2.56Tbps | ||
Packet Forwarding Rate | 1,080Mpps | 1,080Mpps | 1,440Mpps |
Port Buffer | 16MB | ||
RAM | 2GB | ||
ARP Table | Up to 40K | ||
MAC Address | Up to 96K | ||
Routing Table Size (IPv4/IPv6) | Up to 2K | ||
Multicast Entries (IPv4/IPv6) | Up to 16K | ||
ACL Entries | Up to 8K | ||
VLAN | 4K VLANs, Port-based VLAN, MAC-based VLAN, Super VLAN, Protocol-based VLAN, Private VLAN, IP subnet-based VLAN, GVRP | ||
QinQ | Basic QinQ, Flexible QinQ | ||
Link Aggregation | Support LACP | ||
Port Mirroring | Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN | ||
Spanning Tree Protocols | IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, Loop guard, Root guard，Spanning Tree Root Guard(STRG) | ||
DHCP | DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP relay | ||
Multiple Spanning Tree Protocol (MSTP) Instances | 64 (not include default 0) | ||
Maximum Aggregation Port (AP) | Up to 256 | ||
Virtual Routing and Forwarding (VRF) Instances | Up to 2K | ||
Data Center Unified Network Features | Virtualization: | ||
VSU (Virtual Switch Unit) | Support (up to 4 stack members) | ||
L2 Features | MAC, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, MLD snooping, DHCP, Jumbo frame, RLDP, LLDP | ||
Layer 2 Protocols | IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-T), IEEE802.3z (1000BASE-X), IEEE802.3ab (1000BASE-T), IEEE802.3ae (10GBASE-T), IEEE802.3an (10GBASE-T), IEEE802.3ak, IEEE802.3an, IEEE802.3x, IEEE802.3ad (link aggregation), IEEE802.1p, IEEE802.1x, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP snooping, Jumbo Frame (9Kbytes), IEEE802.1ad (QinQ and flexible QinQ), GVRP | ||
Layer 3 Features | ARP, IPv4/v6, PBRv4/v6 | ||
Layer 3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM routing, Policy-based routing, Route-policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, DVMRP, PIM-SSM/SM/DM, MSDP, Any-RP, ISIS | ||
IPv4 Features | Ping, Traceroute, Equal-cost routing, URPF, IPIP, GRE tunnel, VRF | ||
IPv6 Features | Static routing Equal-cost routing, Policy-based routing, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, Manual tunnel, Auto tunnel, IPv4 over IPv6 tunnel, ISATAP tunnel | ||
Basic IPv6 Protocols | ND, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping /Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, VRRP for IPv6,, ISISv6 | ||
IPv6 Routing Protocols | Static routing, Equal-cost routing, Policy routing, RIPng, OSPFv2/v3, BGP4+, IS-IS | ||
IPv6 Tunnel Features | Manual tunnel, Auto tunnel, 6over4 manual tunnel, 6to4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel | ||
Multicast | IGMP v1/v2/v3, IGMP proxy, MSDP, PIM-DMv4 (PIM-DM), PIM-SMv4 (PIM-SM, PIM-SSM), PIM-SM v6, MLD, MLD Proxy | ||
ACL | Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL | ||
QoS | EXP priority mapping based on 802.1p, DSCP, TOS and IP Precedence; ACL traffic classification; Priority marking/remarking; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WRR, and SP+DRR | ||
Reliability | VSU (virtualization technology for virtualizing multiple devices into 1); GR for OSPF/IS-IS/BGP; BFD detection; REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol); 1+1 power redundancy; 2+1 fan redundancy; Hot-swappable line cards and power modules,Dynamic ARP Inspection(DAI), | ||
Security | Network Foundation Protection Policy (NFPP); CPU Protection (CPP); DoS protection; Detection of unauthorized data packets; Data encryption; IP source guard; RADIUS / TACACS+; IPv4 / IPv6 ACL packet filtering based on standard or extended VLANs; Plaintext authentication and MD5 cipher-text authentication of OSPF, RIPv2, and BGPv4 packets; Telnet login through limited IP addresses and the password mechanism; uRPF; Broadcast packet suppression; DHCP snooping,DHCP otpion 82,; Anti-gateway ARP spoofing; ARP check, | ||
Manageability | SNMP v1/v2c/v3; Telnet; Console; Hardware support RCMI (combo interface for MGMT); RMON; SSHv1/v2; FTP/TFTP for file upload and download management; NTP clock; Syslog; SPAN/RSPAN, | ||
Hot Patch | Support | ||
Smart Temperature Control | Auto fan speed adjustment; Fan malfunction alerts; Fan status check | ||
Smart Power Supply | Support power monitor | ||
Other Protocols | DHCP client, DHCP relay, DHCP server, DNS client, UDP relay, ARP proxy, Syslog | ||
Dimensions | 420 × 420 × 44 | 442 × 500 × 44 | 442 × 420 × 44 |
Rack Height | 1RU | ||
Weight | 9.5kg | 11kg | 9kg |
MTBF | >200K hours | ||
Power Supply | AC input: | ||
Power Consumption | <200W | <250W | <250W |
Temperature | Operating temperature: 0°C to 50°C | Operating temperature: 0°C to 45°C | Operating temperature: 0°C to 45°C |
Humidity | Operating humidity: 10% to 90%RH | ||
