RG-S6500 Serisi

Model

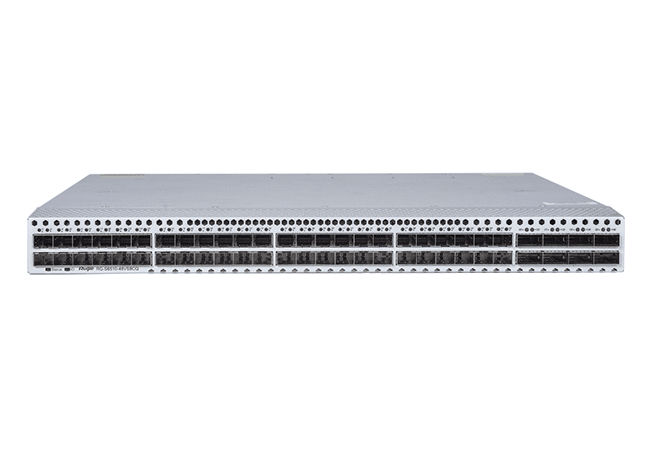

RG-S6510-48VS8CQ

RG-S6520-64CQ

Ports

48 fixed 25G SFP28 ports
8 100G QSFP28 ports

64 fixed 100G QSFP28 ports

Modular Power Slots

2

2

Fan Slots

4

3

Management Ports

1 console port
1 MGMT port

1 USB 2.0 port

Switching Capacity

4.0Tbps

12.8Tbps

Packet Forwarding Rate

2000Mpps

4400Mpps

Port Buffer

32MB

42MB

RAM

4GB

4GB

ARP Table

Up to 100K

Up to 90K

MAC Address

Up to 96K

Up to 72K

Routing Table Size (IPv4/IPv6)

Up to 28K

Multicast Entries (IPv4/IPv6)

Up to 16K

Up to 8K

ACL Entries

Up to 4.5K

Up to 1.5K

VLAN

4K VLANs, Port-based VLAN, MAC-based VLAN, Super VLAN, Protocol-based VLAN, Private VLAN, IP subnet-based VLAN, GVRP

QinQ

Basic QinQ, Flexible QinQ

Link Aggregation

Support LACP

Port Mirroring

Many-to-one mirroring, One-to-many mirroring, Flow-based mirroring, Over devices mirroring, VLAN-based mirroring, VLAN-filtering mirroring, AP-port mirroring, RSPAN, ERSPAN

Spanning Tree Protocols

IEEE802.1d STP, IEEE802.1w RSTP, Standard 802.1s MSTP, Port fast, BPDU filter, BPDU guard, TC guard, TC protection, Loop guard, Root guard，Spanning Tree Root Guard(STRG)

DHCP

DHCP server, DHCP client, DHCP snooping, DHCP relay, IPv6 DHCP relay

Multiple Spanning Tree Protocol (MSTP) Instances

64 (not include default 0)

Maximum Aggregation Port (AP)

Up to 256

Virtual Routing and Forwarding (VRF) Instances

Up to 2K

Up to 1K

Data Center Unified Network Features

Virtualization:
Virtual Switch Unit (VSU), EVPN VXLAN, Open-Flow.

Visualization:

INT, gRPC, s-FLOW，

Others:

PFC, ECN

Virtualization:
Virtual Switch Unit (VSU), Open-Flow.

Visualization:

INT, gRPC, s-FLOW，

Others:

PFC, ECN

VSU (Virtual Switch Unit)

Support (up to 2 stack members)

L2 Features

MAC, ARP, VLAN, Basic QinQ, Felix QinQ, Link aggregation, Mirroring, STP, RSTP, MSTP, Broadcast storm control, IGMP v1/v2/v3 snooping, IGMP filter, IGMP fast leave, MLD snooping, DHCP, Jumbo frame, RLDP, LLDP

Layer 2 Protocols

IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-T), IEEE802.3z (1000BASE-X), IEEE802.3ab (1000BASE-T), IEEE802.3ae (10GBASE-T), IEEE802.3an (10GBASE-T), IEEE802.3ak, IEEE802.3an, IEEE802.3x, IEEE802.3ad (link aggregation), IEEE802.1p, IEEE802.1x, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP snooping, Jumbo Frame (9Kbytes), IEEE802.1ad (QinQ and flexible QinQ), GVRP

Layer 3 Features

ARP, IPv4/v6, PBRv4/v6

Layer 3 Protocols (IPv4)

BGP4, OSPFv2, RIPv1, RIPv2, MBGP, LPM routing, Policy-based routing, Route-policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, DVMRP, PIM-SSM/SM/DM, MSDP, Any-RP, ISIS

IPv4 Features

Ping, Traceroute, Equal-cost routing, URPF, IPIP, GRE tunnel, VRF

IPv6 Features

Static routing Equal-cost routing, Policy-based routing, OSPFv3, RIPng, BGP4+, MLDv1/v2, PIM-SMv6, Manual tunnel, Auto tunnel, IPv4 over IPv6 tunnel, ISATAP tunnel

Basic IPv6 Protocols

ND, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping /Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, VRRP for IPv6, IS-ISv6

IPv6 Routing Protocols

Static routing, Equal-cost routing, Policy routing, RIPng, OSPFv2/v3, BGP4+, IS-IS

IPv6 Tunnel Features

Manual tunnel, Auto tunnel, 6over4 manual tunnel, 6to4 auto tunnel, ISATAP, IPv4 over IPv6 tunnel, IPv6 over IPv6 tunnel, GRE tunnel

Multicast

IGMP v1/v2/v3, IGMP proxy, MSDP, PIM-DMv4 (PIM-DM), PIM-SMv4 (PIM-SM, PIM-SSM), PIM-SM v6, MLD, MLD Proxy

ACL

Standard/Extended/Expert ACL, Extended MAC ACL, ACL 80, IPv6 ACL

QoS

EXP priority mapping based on 802.1p, DSCP, TOS and IP Precedence; ACL traffic classification; Priority marking/remarking; Multiple queue scheduling mechanisms, such as SP, WRR, DRR, SP+WRR, and SP+DRR

Reliability

VSU (virtualization technology for virtualizing multiple devices into 1); GR for OSPF/IS-IS/BGP; BFD detection; REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol); 1+1 power redundancy; 2+1 fan redundancy; Hot-swappable line cards and power modules, Dynamic ARP Inspection(DAI),de-stacking

VSU (virtualization technology for virtualizing multiple devices into 1); GR for OSPF/IS-IS/BGP; BFD detection; REUP dual-link fast switching technology; RLDP (Rapid Link Detection Protocol); 1+1 power redundancy; 2+1 fan redundancy; Hot-swappable line cards and power modules, Dynamic ARP Inspection(DAI),

Security

Network Foundation Protection Policy (NFPP); CPU Protection (CPP); DoS protection; Detection of unauthorized data packets; Data encryption; IP source guard; RADIUS / TACACS+; IPv4 / IPv6 ACL packet filtering based on standard or extended VLANs; Plaintext authentication and MD5 cipher-text authentication of OSPF, RIPv2, and BGPv4 packets; Telnet login through limited IP addresses and the password mechanism; u-RPF; Broadcast packet suppression; DHCP snooping, DHCP Option 82,; Anti-gateway ARP spoofing; ARP check,

Manageability

SNMP v1/v2c/v3; Telnet; Console; Hardware support RCMI (combo interface for MGMT); RMON; SSHv1/v2; FTP/TFTP for file upload and download management; NTP clock; Syslog; SPAN/RSPAN,

Hot Patch

Support

Smart Temperature Control

Auto fan speed adjustment; Fan malfunction alerts; Fan status check

Smart Power Supply

Support power monitor

Other Protocols

DHCP client, DHCP relay, DHCP server, DNS client, UDP relay, ARP proxy, Syslog

Dimensions
(W x D x H) (mm)

442 * 387 * 44

442 * 450 * 88.1

Rack Height

1RU

2RU

Weight

8kg
(incl. 4 fan modules and 2 power supply modules)

14.8kg

(incl. 3 fan modules and 2 power supply modules)

MTBF

330K hours

>200K hours

Safety Standards

EN 60950-1, GB4943-2011

Emission Standards

GB9254-2008 CLASSA, VCCI Class A, EN 300 386, EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11

Power Supply

AC input:
Rated voltage range: 100V to 240V AC
Frequency: 50-60Hz
Rated current: 7.2A-3.5A

HVDC input:
Input voltage range: 192V to 288V DC
Input current range: 3.6A

AC input:
Rated voltage range: 100V to 240V AC
Frequency: 50-60Hz
Rated current:10A-5A

HVDC input:
Input voltage range: 192V to 288V DC
Input current range:4.5A

Power Consumption

<300W

<600W

Temperature

Operating temperature: 0°C to 45°C

Storage temperature: -40ºC to 70ºC

Humidity

Operating humidity: 10% to 90%RH

Operating Altitude

-500—5000 M
