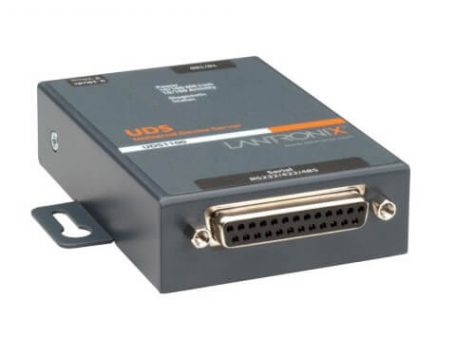

UDS1100 / UDS1100-PoE

• Network virtually any device in minutes
• Access, monitor and control equipment over Ethernet
• Replace dedicated PCs and/or modem lines with fast and reliable Ethernet networking
• Configure quickly and easily via HTTP, DHCP, Telnet, serial or Lantronix DeviceInstaller utility
• Supports RS232, RS422 and RS485 communications
• Environmentally-friendly RoHS and WEEE compliant
• Small enough to place almost anywhere
• Features TruPort® Com port control technology
• Power over Ethernet (PoE) model available
• Meets the newest UL 864 9th Edition standards

Easy to Set Up and Use

The UDS1100 can be set up locally through its serial port, or remotely using Telnet or a web browser. The included DeviceInstaller Windows-based configuration software simplifies setup and provides an easy way to:

•
• Assign IP & other network specific addresses
• Load custom web pages
• Enable web-based configuration of the device server
• Ping or query the attached device(s) over the network
• View specific device data files
• Upgrade firmware

• Network virtually any device in minutes
• Access, monitor and control equipment over Ethernet
• Replace dedicated PCs and/or modem lines with fast and reliable Ethernet networking
• Configure quickly and easily via HTTP, DHCP, Telnet, serial or Lantronix DeviceInstaller utility
• Supports RS232, RS422 and RS485 communications
• Environmentally-friendly RoHS and WEEE compliant
• Small enough to place almost anywhere
• Features TruPort® Com port control technology
• Power over Ethernet (PoE) model available
• Meets the newest UL 864 9th Edition standards

Extending Serial to Ethernet Communications Across the Globe

Our approach to network-enabling devices is transparent to your attached equipment and software so you won’t need to change the way you work. Using a method called serial tunneling, the UDS1100 encapsulates serial data into packets and transports it over Ethernet. Serial tunneling can be done in two ways:

• Using Lantronix supplied Com Port Redirector software, Windows® device applications not designed for network communications are re-directed to communicate to devices connected to the UDS1100.
• Connecting two UDS1100 device servers configured to automatically talk to each other over the network creates virtual serial to Ethernet connections that can extend serial communications across a facility or around the world.

The built-in web server enables users to access and configure the UDS1100 from a standard web browser.

Web pages enabling the UDS1100 to be customized for unique applications can be built using Lantronix development tools. On-board Flash memory provides room for future system software upgrades and maintenance-free, non-volatile web page storage.

Modem Replacement

In modem emulation mode, the UDS is used to replace dial-up modems. The unit accepts modem AT commands on the serial port. It then establishes a network connection to the end device, leveraging network connections and bandwidth to eliminate dedicated modems and phone lines. The PoE version enables you to also take advantage of network connectivity in areas without power outlets.

Total Com Port Control with TruPort Technology

Built into the included Com Port Redirector software, TruPort® technology enables Windows-based applications to access and control serial ports on the UDS1100 as if they were actually local PC serial ports. The application can monitor and set hardware pins on the UDS1100 serial ports as well as access serial buffers for total Com port control. This allows existing applications to seamlessly transition from controlling local devices to true remote monitoring and control of devices around the world.
